Pit Lid Mount Installation

Pit Lid Mount Installation

Roles: Technicians

Last updated: November 2023

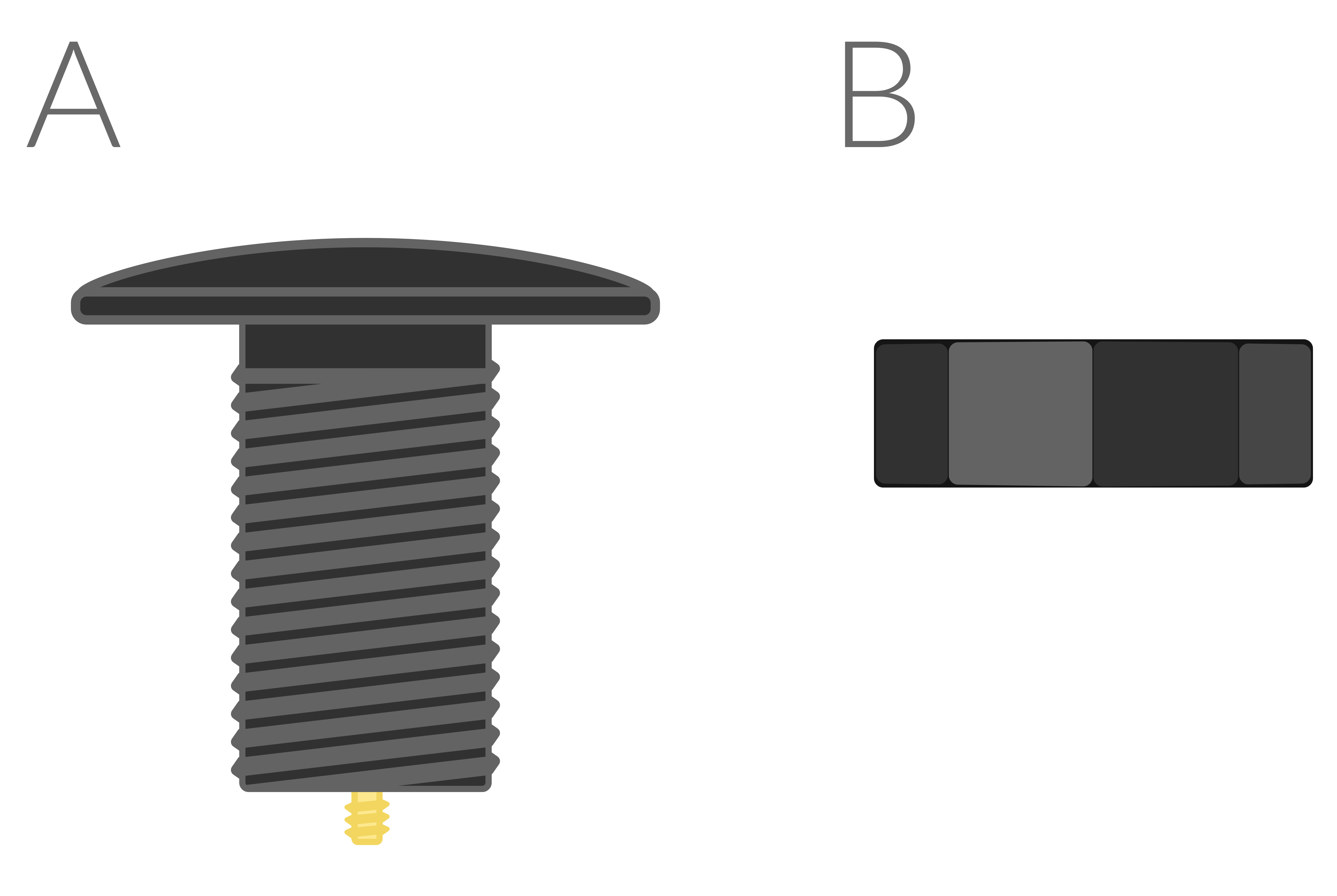

A - Pit Lid Mount

B - Mounting Nut

Installation

1. Attach Pit Lid Mount

Secure the Pit Lid Mount to the pit lid using the included nut

2. Mount TR4-X

Screw the TR4-X Transceiver onto the mounting point

Pit Lid Mount QS-Guide (COVER) REVIEW.svg

3. Place Pit Lid

The lid can now be placed over the pit
