TR4 Installation

TR4 Installation

Roles: Technician

Last updated: October 2023

Installation

1. Program the Device

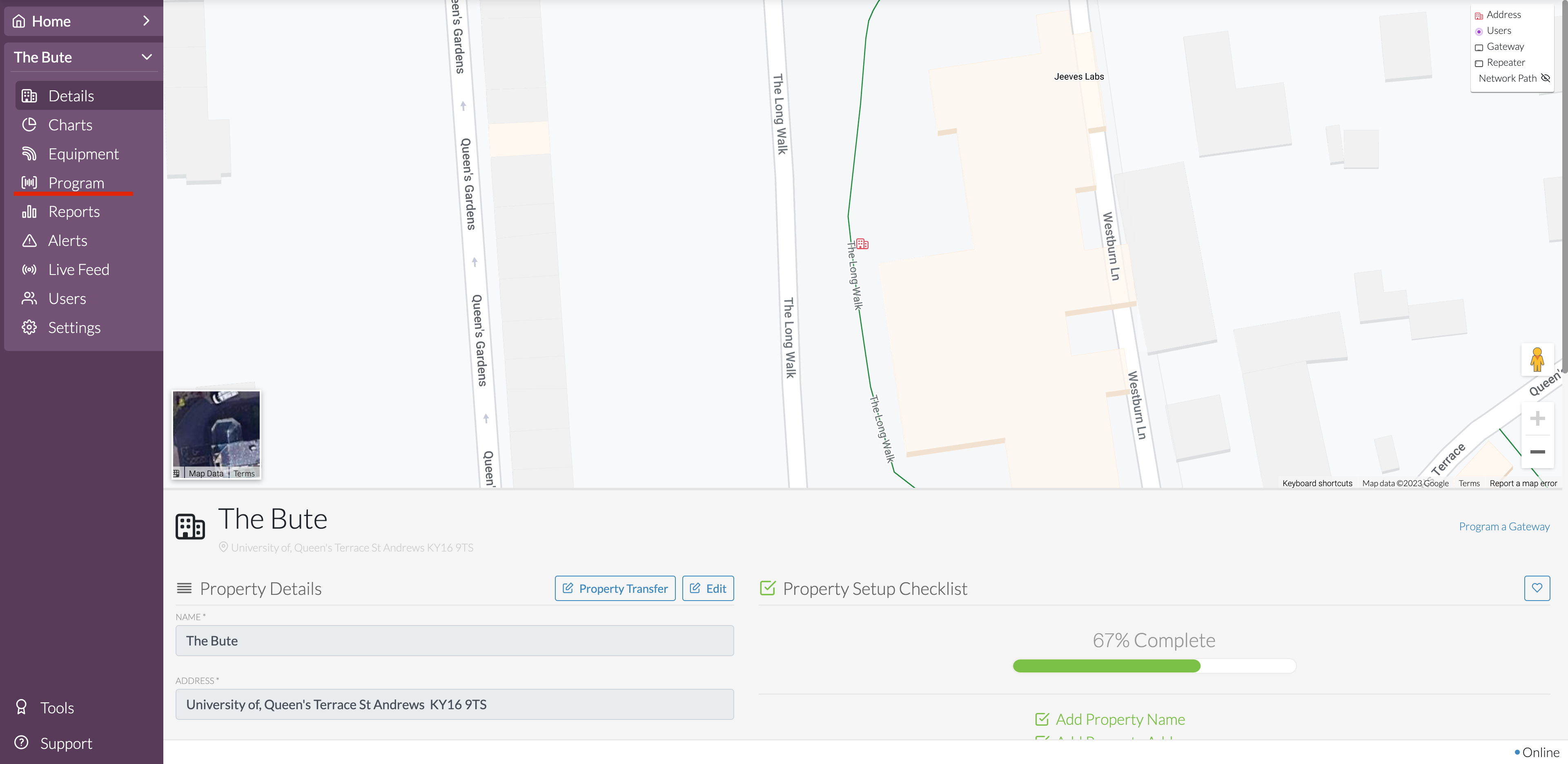

In the Program page on your property, Program your devices

Screen Shot 2023-10-30 at 11.08.56 AM.png

2. Wire to the Meter

Prepare wire coming from the meter

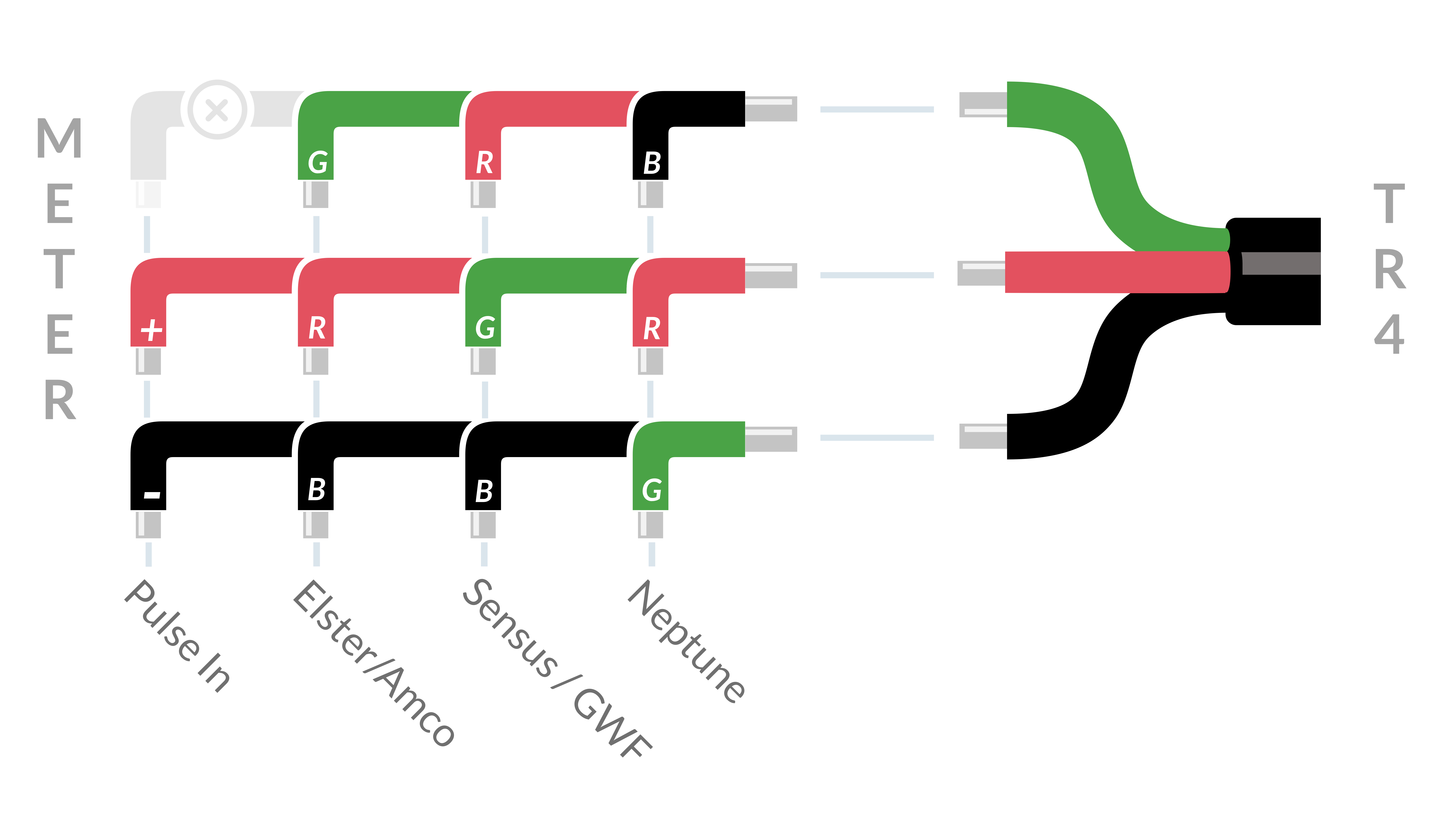

Using Wiring guide, align wired connections according to the configuration needed

TR4-X Wiring.png

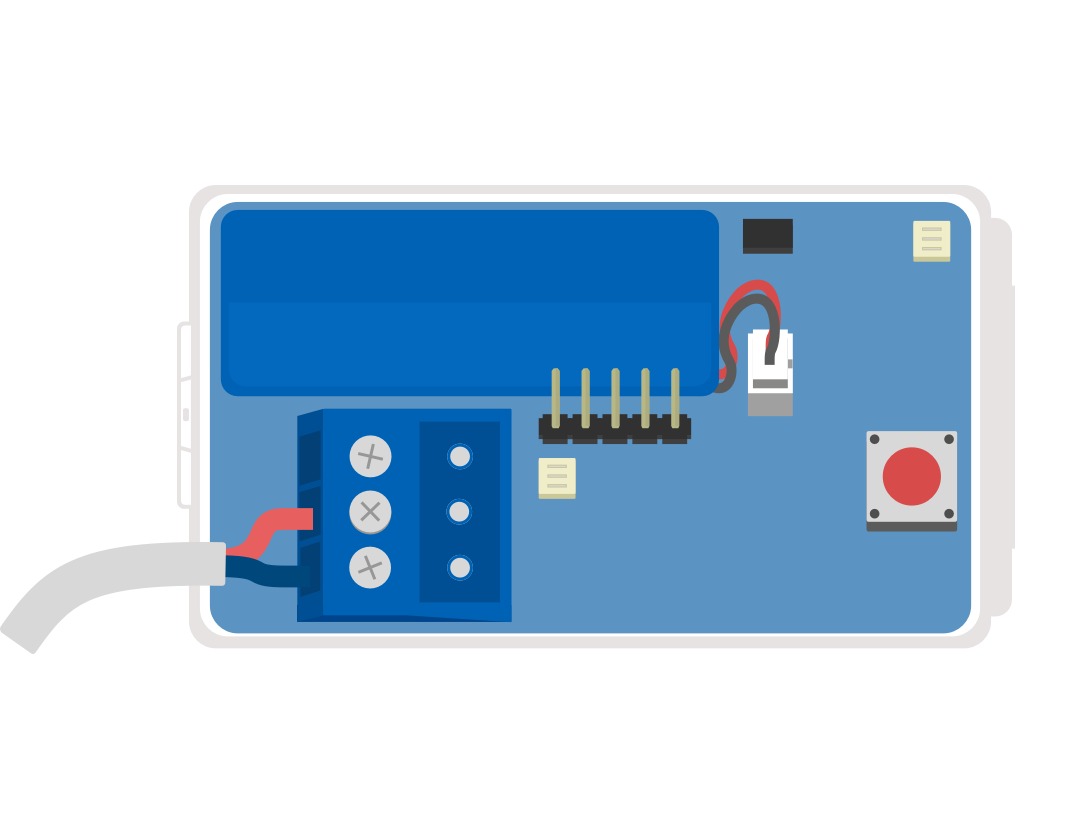

Secure wire into the Degson Connector and attach to TR4

TR4 Wire.png

3. Mount the Device

Stick or Screw the included mounting pad onto a surface

Caution

When picking a surface, avoid attaching the device near metal objects that could cause issues with signal quality. Avoid putting them behind water heaters or near heat sources

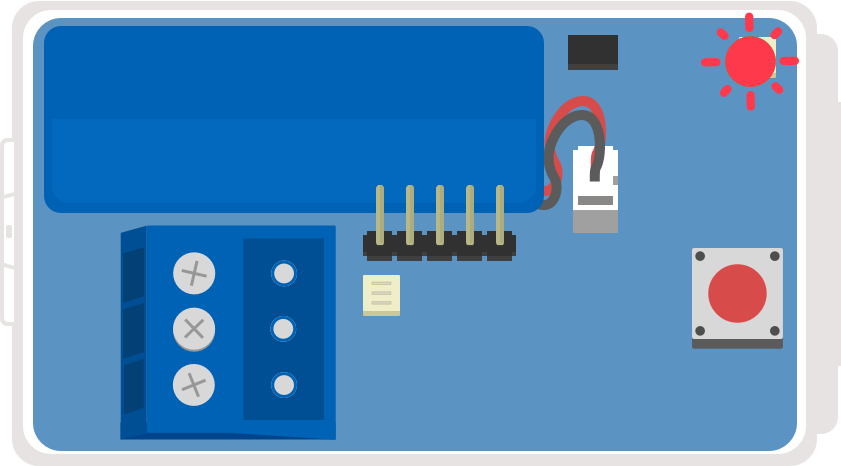

Press and hold the red button until you see a light

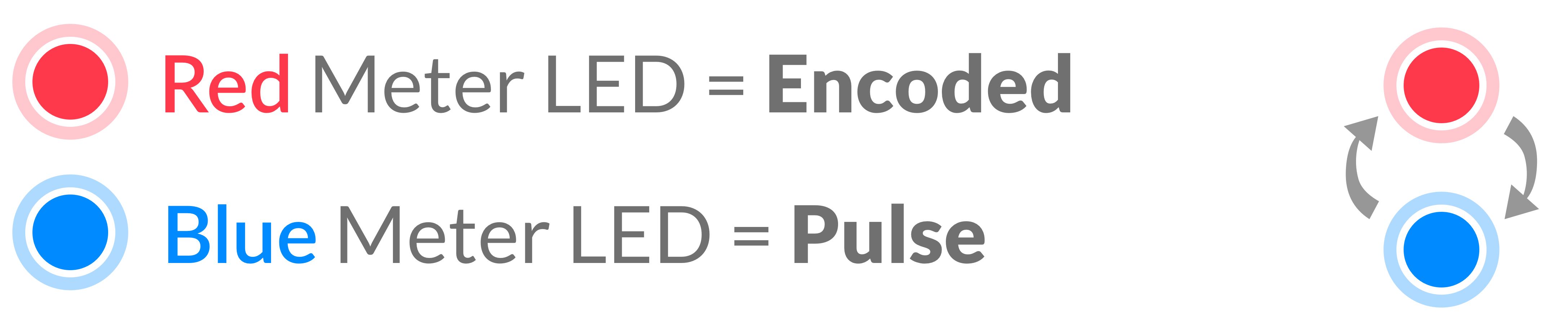

Program to the correct mode
