M201C & M201CH Water Meter Overview and Documents
Roles: All Users
Last Updated: January 2020

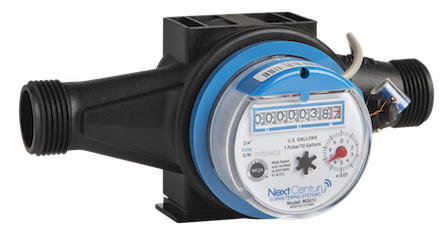

The M201 series multi-jet poly meter includes both cold and hot water models. The M201 is NTEP approved for both horizontal and vertical installations. The full 3/4", 30 gpm design makes the M201 an ideal meter for multi-family submetering.
Specifications:
- 30 GPM Max Flow Rate
- 3/4" Nominal Pipe Size
- 1" NPSM Thread
- Meets AWWA accuracy standards for horizontal or vertical installation
- AMR output: pulse, dry contact
Model Numbers
|
Model Number |
Name |
Description |
|
M201C-10G |
M201C Cold Water |
Cold water meter, register in gallons. Pulse output configured 1 pulse per 10 gallons. |
|
M201CH-10G |
M201CH Cold or Hot Water |
Hot water meter, register in gallons. Pulse output configured 1 pulse per 10 gallons. |
|
M201C-10L |
M201 Cold Water Metric |
Cold water meter, register in liters. Pulse output configured 1 pulse per 10 liters. |
|
M201CH-10L |
M201 Cold or Hot Water Metric |
Hot water meter, register in liters. Pulse output configured 1 pulse per 10 liters. |
|
M201C-10G-CA |
M201 Cold Water California Approved |
Cold water meter, register in gallons. California approved. |
|
M201CH-10G-CA |
M201 Cold or Hot Water California Approved |
Hot water meter, register in gallons. California approved. |
Specification and Help Documents
|
Document Title |
Download |
|
M201C Cold Water Meter Specifications |
|
|
M201CH Hot Water Meter Specifications |
|
|
Meter Installation Guide |
|
|
NTEP Certification for M201C and M201CH |
|
|
MA Accepted Plumbing Products |
|
|
NSF-61 and ANSI-371 Certification |
|
|
Grivory GV5 FWA Technical Data Sheet |
|
|
Yellow Card Grivory |
|
|
Surface Burning Characteristics |
*Due to updated regulations and product improvements, NextCentury Submetering Systems, LLC reserves the right to change the product specifications without notice.
