M201C & M201CH Overview & Documents
Roles: All Users
Last updated: September 2023

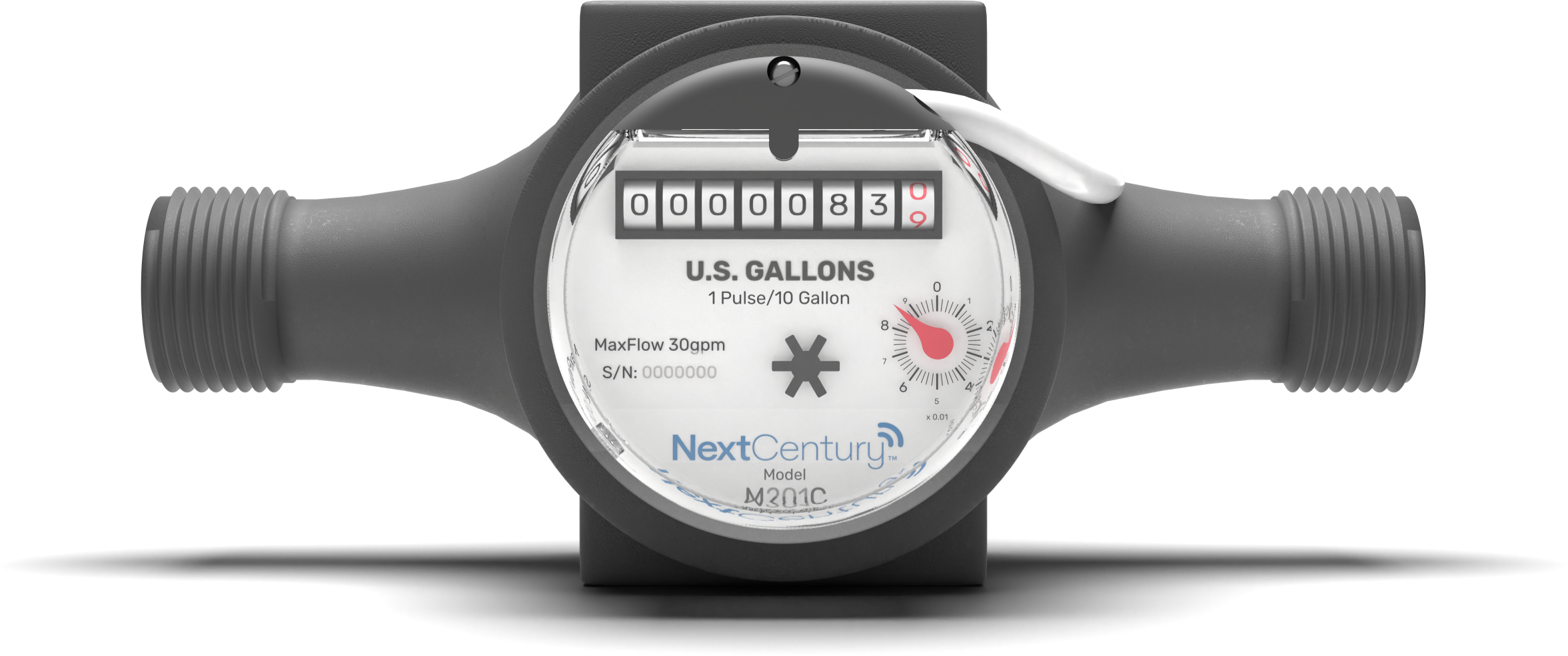

The M201 series multi-jet poly meter includes both cold and hot water models. The M201 is NTEP approved for both horizontal and vertical installations. The full 3/4", 30 gpm design makes the M201 an ideal meter for multi-family submetering.
Specifications
- 30 GPM Max Flow Rate
- 3/4" Nominal Pipe Size
- 1" NPSM Thread
- Meets AWWA accuracy standards for horizontal or vertical installation
- AMR output: pulse, dry contact
Versions
Model Number
Description
M201C-10G
Cold water meter, register in gallons. Pulse output configured 1 pulse per 10 gallons.
M201CH-10G
Hot water meter, register in gallons. Pulse output configured 1 pulse per 10 gallons.
M201C-10L
Cold water meter, register in liters. Pulse output configured 1 pulse per 10 liters.
M201CH-10L
Hot water meter, register in liters. Pulse output configured 1 pulse per 10 liters.
M201C-10G-CA
Cold water meter, register in gallons. California approved.
M201CH-10G-CA
Hot water meter, register in gallons. California approved.
Document
Download
M201C Cold Water Meter Specifications
M201CH Hot Water Meter Specifications
Meter Installation Guide
NTEP Certification for M201C and M201CH
MA Accepted Plumbing Products
NSF-61 and ANSI-371 Certification
Grivory GV5 FWA Technical Data Sheet
Yellow Card Grivory
Surface Burning Characteristics
