RR301-TR Remote Reader Installation

Roles: Technicians
Last updated: September 2020

This article outlines the process for installing the RR301-TR Remote Reader.


A - RR301-TR Remote Reader
B - Mounting Plate
C - Sheetrock Anchors
D - Wall Mount Screws
E - Box Mount Screws
F - Wire Security Assembly
G - Security Seal Tabs



1. Wire meter(s) to the mounting plate terminals

Pull down the security tab to remove the Remote Reader from the mounting plate.



Feed wires through the mounting plate and connect them to the terminals for meter 1 and meter 2.


Use the provided wiring guide and wire according to the meter type you are installing. Click the wiring guide below for a larger view.


2. Install the mounting plate to the wall

With the provided hardware, secure the mounting plate to the wall.


3. Attach the RR301-TR Remote Reader to the mounting plate

Align the Remote Reader with the mounting plate and press down. Then lock the security tab in place.



Programming Options

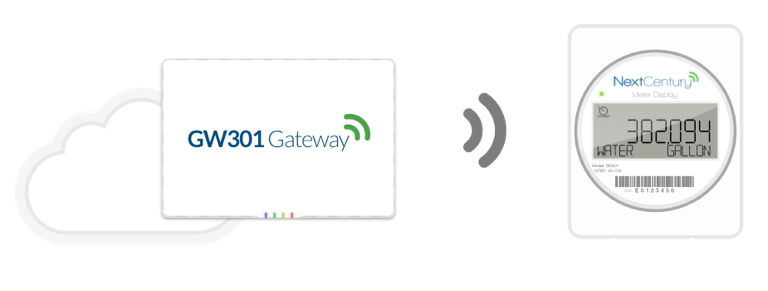

Cloud Configuration

Use this configuration method when a Cloud-connected Gateway and Repeaters have already been installed.



For cloud programming, see Unit Details: Programming and Edits

Direct Connect Programmer

Use this configuration method when a cloud-connected Gateway is not yet available.


For Direct Connect programming, see Direct Connect Programming
