RR301-TR Overview and Documents
Roles: Technician, Admin
Last updated: November 2023
Note
There is a newer version of this product: RR4-TR Remote Reader Overview & Documents

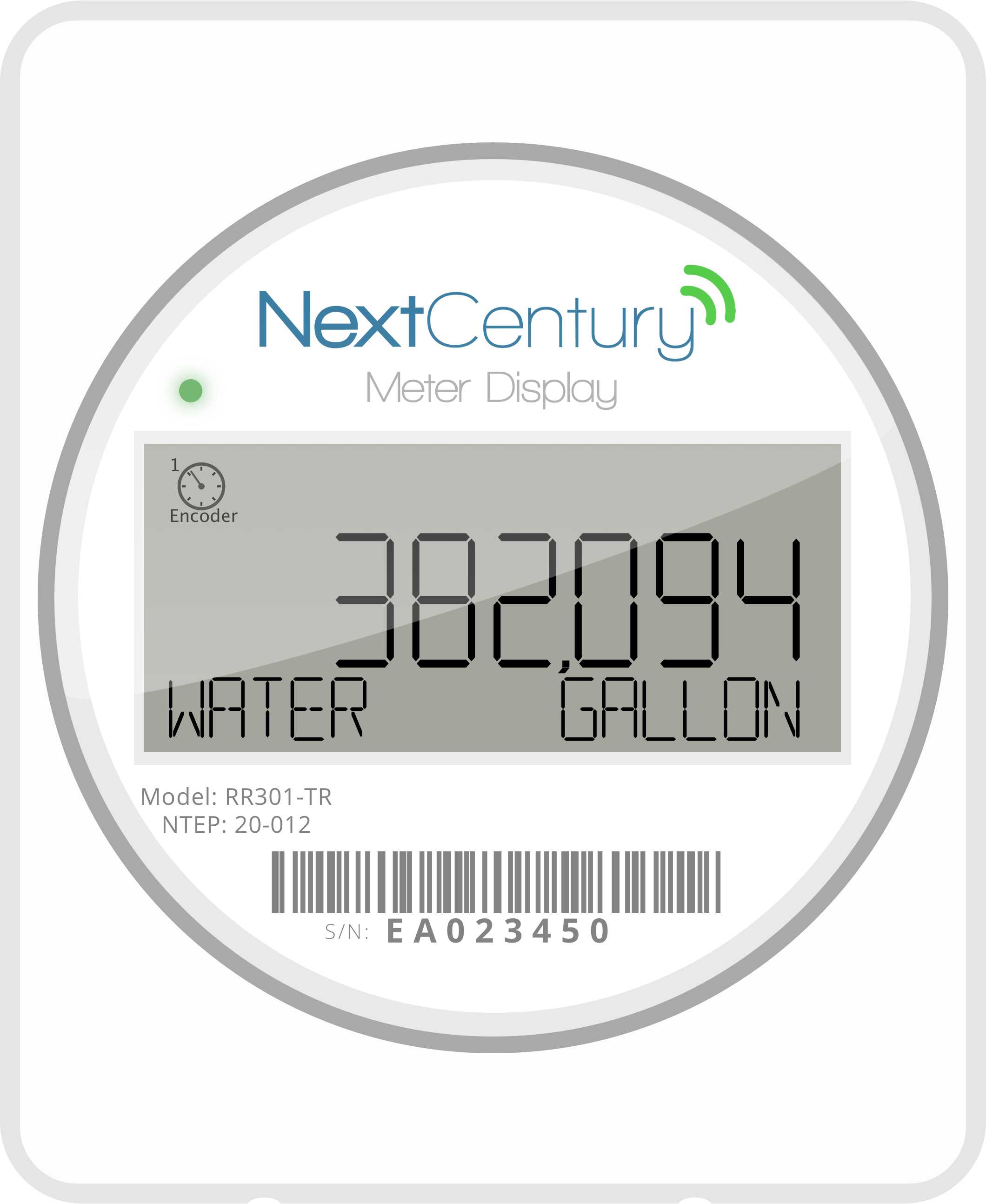

The NextCentury Remote Reader is an advanced meter reading solution which provides a high visibility remote display of one or two utility meters. The Remote Reader is an NTEP certified remote display for water, electric, and gas applications.
The Remote Reader has an attractive consumer design, making it an ideal solution for apartment and remote metering. The utility and unit of measure are clearly displayed, ensuring an accurate interpretation of the read.
The Remote Reader utilizes Dual Meter+™ technology, making this single model compatible with virtually all modern encoded and pulse-output utility meters, including water, electric, gas, run-time, and thermal meter models.
Certifications
- FCC: 20949-RR301 | IC: 20949-RR301
- NTEP: 20-012
- IP-Rating: IP-66
Dual Meter+™
- Any combination of two encoded or pulse-output meters
- Pulse input/pulse output capability
Operation Environment
- -20°C to 60°C (-4°F to 140°F )
- Indoor or outdoor installation
- Outdoor Ratings: IP-66
Battery
- Preinstalled, field-replaceable ER18505
- Up to 10-year battery life
Dimensions
- Display unit and mounting plate: 5.7” x 4.6” x 1.7” (145mm x 117mm x 44mm)
- Mounting holes center-to-center: 3.5” (88.4 mm)
- Compatible with a standard single gang wall-box
Configuration Requirements
- A DC301 Direct Connect device (sold separately) is required for configuration
- Pre-programming available
Document Title
Download
RR301-TR Remote Reader Quick Start Guide
RR301-TR Remote Reader Specifications and Installation Manual
NTEP Certification for RR301-TR
FCC RR301-TR
DGS Warranty
Plastics in Electronic Applications
