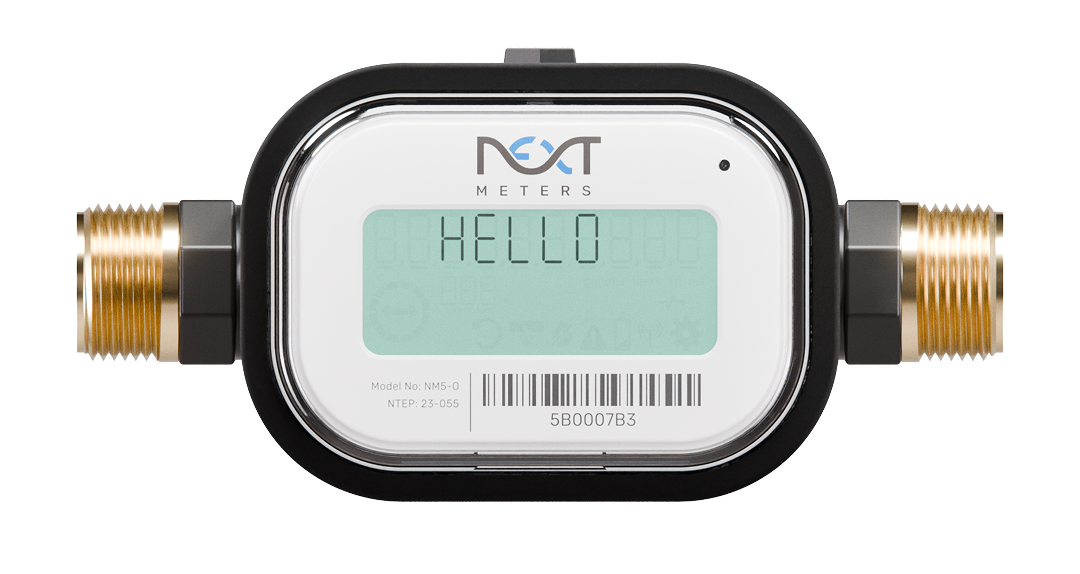

The NM5-O is an ultrasonic water meter with NextConnect Wireless technology. It combines cutting-edge ultrasonic technology with AMR (Automatic Meter Reading) capabilities.
Key benefits
- Designed for indoor or outdoor metering.
- Accuracy that doesn't degrade over time.
- Open flow-tube design reducing head loss.
- Simplified installation with an all-in-one meter and transceiver that can connect directly to the NextCity Cloud.
- Compatible with the NextCity wireless platform for real-time data and alerting.
- Fully electronic with no moving parts that wear out.
- Equipped with 5G LTE cellular, fixed-network, walk-by, and drive-by technologies for redundancy, flexibility, and scalability.
The Next Meter has the following:
- FCC ID: 2A8EC-NM5O (Pending) | IC: 28950-NM5O (Pending)
- NSF/ANSI 61 & 372
- NTEP/CTEP Approval 23-055
- Conforms to AWWA C715-18
Here are some tips for installing the NM5-O
- Indoor or outdoor installation
- Up to 90% non-condensing humidity
- Horizontal or vertical installation
- The register can face any position to make it convenient to read
For the full installation process, follow the guide here: NM5-O NextMeter Outdoor Installation
The NM5-O offers two versatile output options. It utilizes built-in NextConnect wireless technology via cellular, fixed-network, walk-by, or drive-by reading options for seamless, real-time data communication. Additionally, there's a wired pulse output available for users who prefer or require a wired connection. These options provide flexibility to suit your specific monitoring needs.
The battery has a typical longevity of 20+ years.
The NM5-O is engineered to perform beyond standard requirements and can endure pressures far above standard water supply specifications. It has been tested to endure over 100,000 pressure cycles.
Yes, the NM5-O meter undergoes NSF testing to ensure quality and safety in compliance with NSF standards.
