Overview
Universal 5G LTE endpoint for fixed-network, walk-by, and drive-by reads.

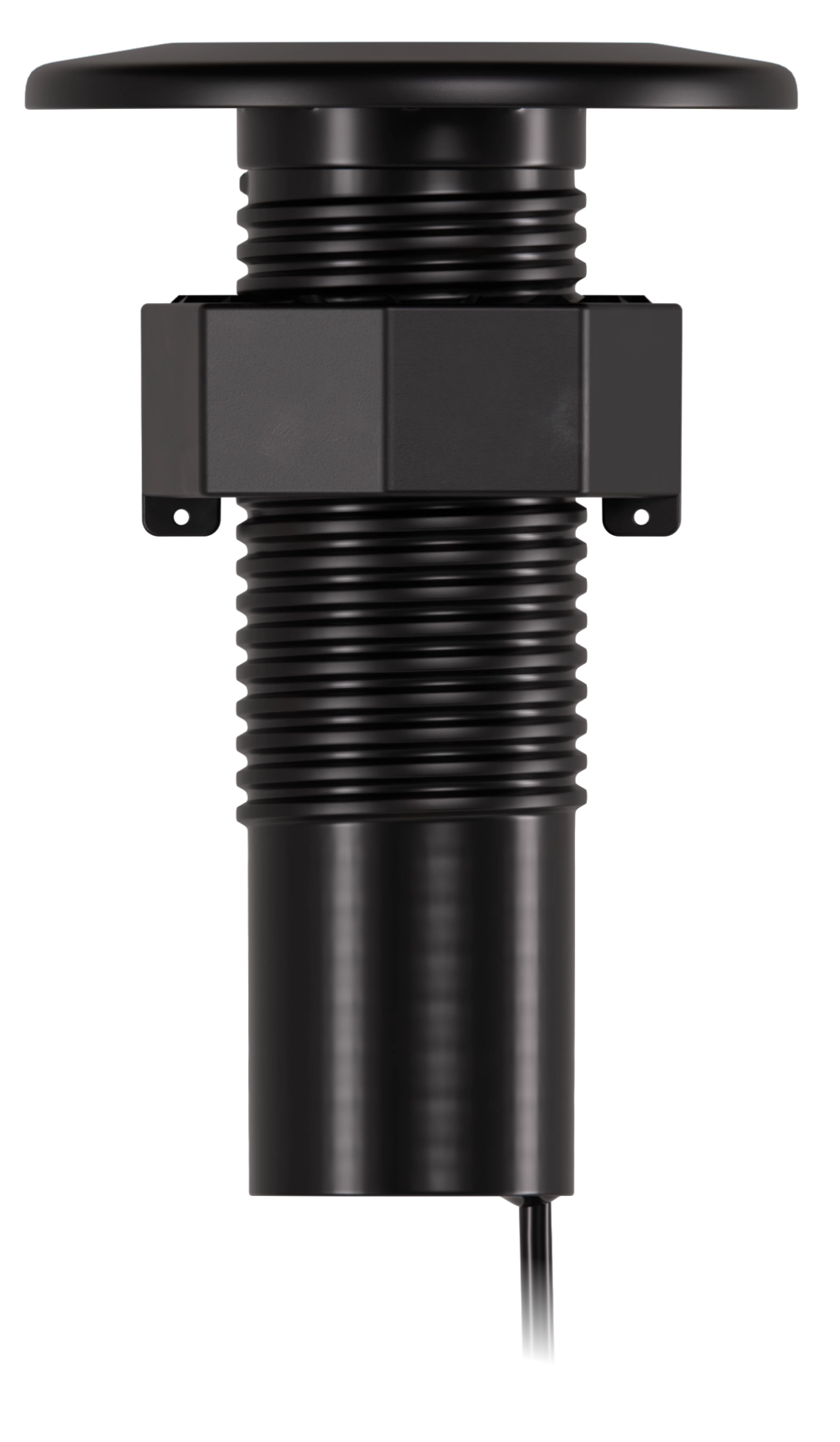

The NextConnect (NC5) is a universal 5G LTE cellular meter endpoint. Capable of supporting fixed-network, walk-by, drive-by, and cellular applications. It’s designed to scale your metering deployments with the simplicity of a single device.
With the NextConnect wireless solution, all of your meter endpoints are enabled with 5G LTE cellular communication, allowing them to directly sync meter data within coverage areas without additional infrastructure.
Additional built-in wireless technologies offer redundancy and scaleability, enabling the NextConnect to also communicate through fixed-network, walk-by, or drive-by reading methods. No matter what method is used to collect reads, all data is brought into the same platform, eliminating the need for manual entry or reporting from multiple systems.
Using Meter+ Technology, the NextConnect enhances your meter with auto protocol detection. One single model works for all meter types across pulse and encoded outputs, simplifying your installations.
Specifications
Connectivity
| Meter+ Protocol Compatibility | Auto protocol detection & wide compatibility Passive pulse sensing (reed switch, open drain, etc.) Active voltage pulse (max 16v) Encoded UI-1203 (Sensus), Neptune, GWF, & Elster protocols |
|---|---|
| Wireless Communication | 5G cellular with simple, no-contract subscription Wireless fixed-network, drive-by, and walk-by reading modes Seamless operation between wireless technologies |
Physical and power
| Battery | 20+ year high-capacity battery life |
|---|---|
| Operation Environment | Engineered for long-term outdoor durability Operating temperature: -40ºC to 60ºC Waterproof sealed construction, IP-68 rated |
Certifications
| Approvals | FCC: 2A8EC-NC5 (Pending) | IC: 28950-NC5 (Pending) Contains FCC ID: 2ANPO00NRF9151 Contains IC ID: 24529-NRF9151 |
|---|
More details
| Installation | Designed for installation in meter pits. Fits lid holes 1.7-2.1 in. (43-53 mm) in diameter Wall mount accessories available (sold separately) |
|---|
Dimensions
| Top diameter | 3.93" (10 cm) |
|---|---|
| Tube diameter | 1.65" (4.2 cm) |
| Product height | 5.45" (13.85 cm) |
| Cable length | 3' (91.5 cm) standard 10' (3 m) extended cable available |
Installation
Install the NextConnect
Remove lid cutout

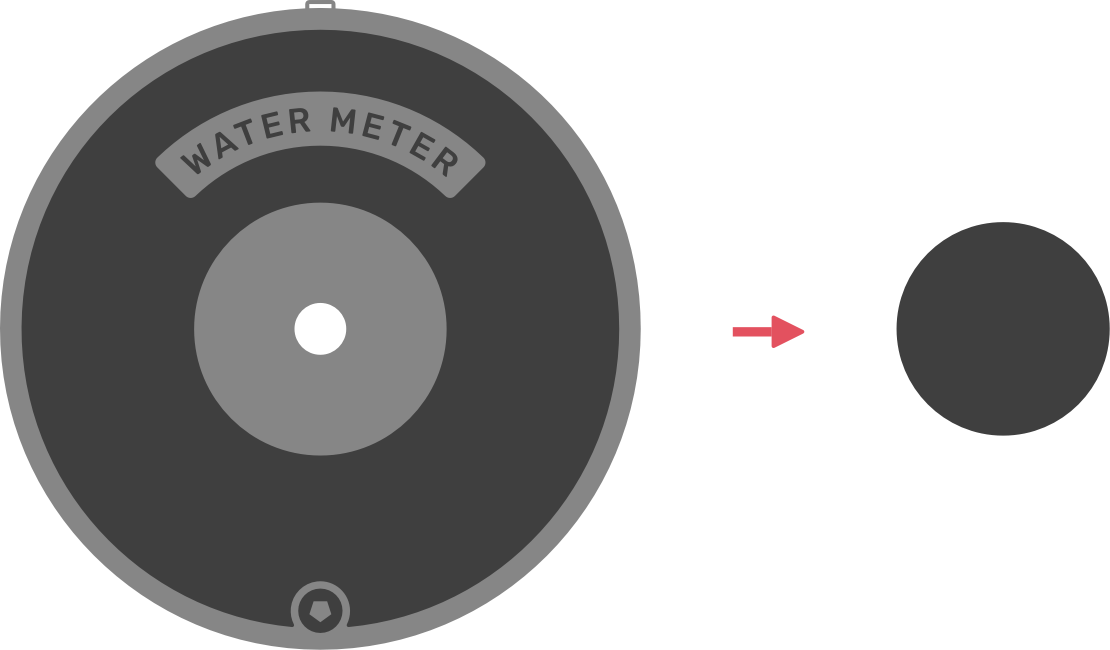

Remove the round mounting cutout from the meter pit lid, exposing the lid’s mounting hole.
Secure the NextConnect to the lid

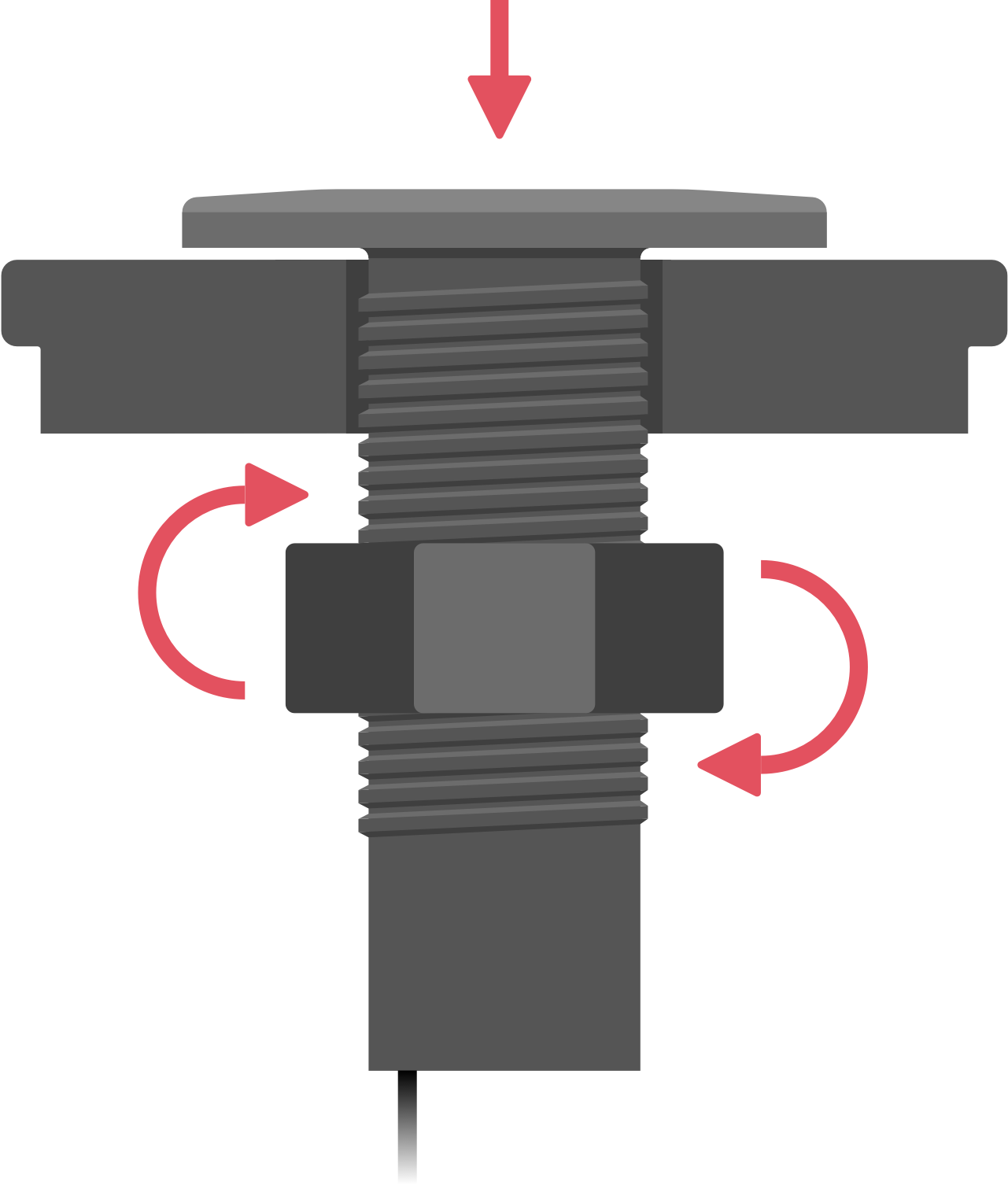

Insert the NextConnect through the mounting cutout and secure it to the lid using the provided mount nut.
Connect cables

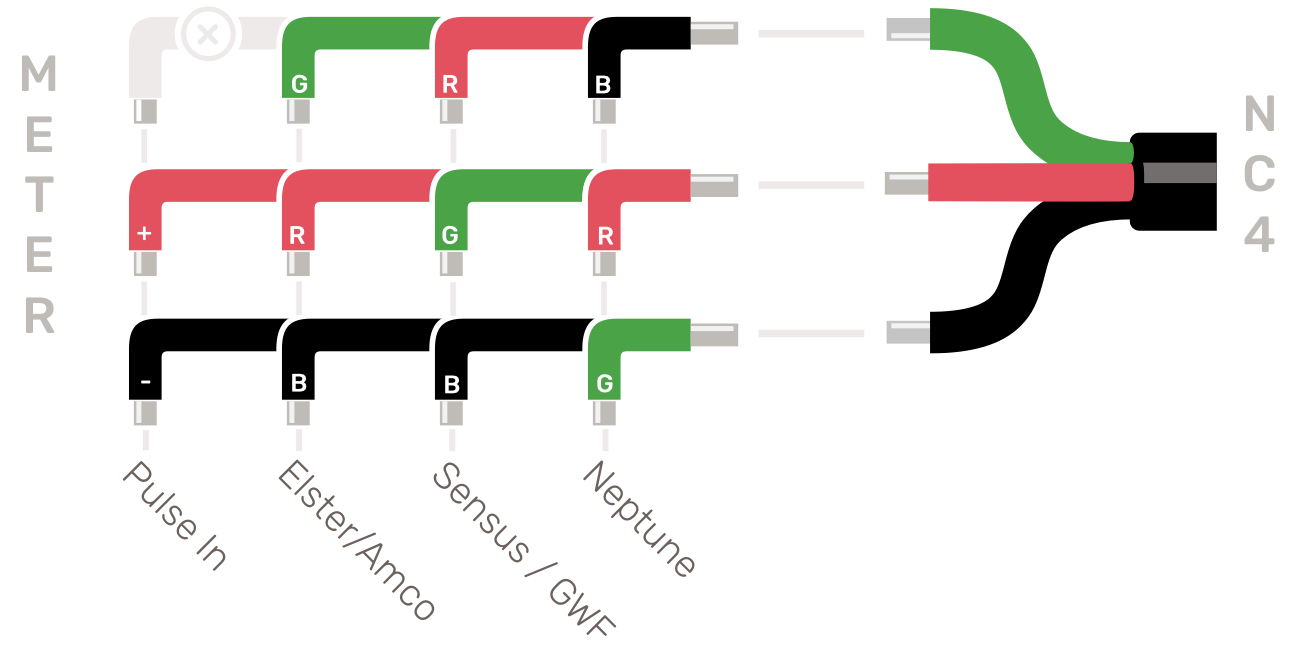

Splice the wiring of the NextConnect and the water meter. Follow the wiring guide below for your specific meter.
Verify NextConnect communication

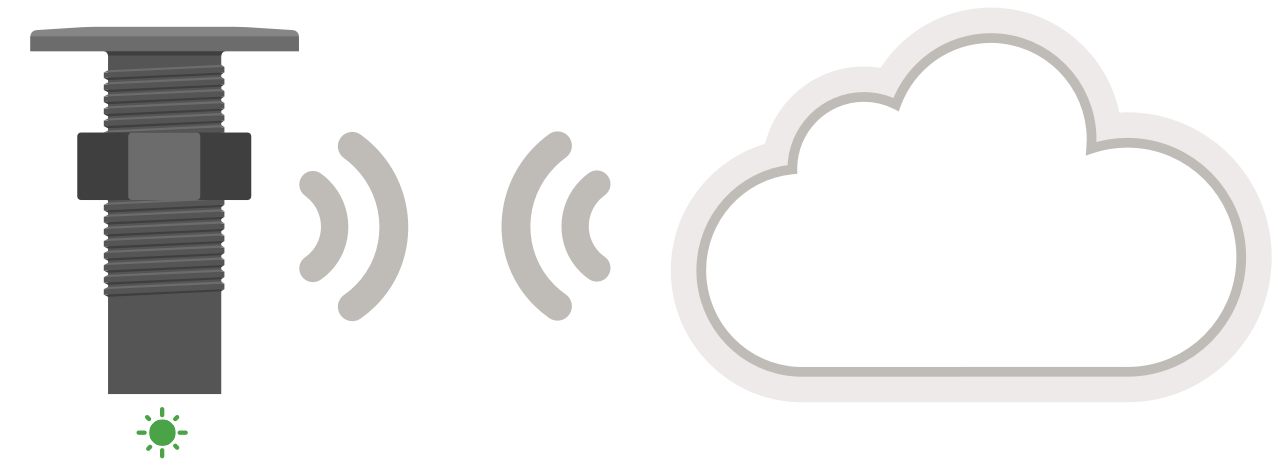

Use a magnet to verify device connectivity. A magnet swipe on the top of the lid initiates a check-in. The LED will blink green when the NextConnect communicates with the Cloud.
If green blinks are not seen, you may need to install additional network equipment nearby. The magnet swipe can be repeated to retry.
Note
The NextConnect must be programmed in order for it to begin communicating with the NextCity Cloud.
Additional Setup
Programming is the process of associating the device's serial number with the location and utility type where it is installed.
To quickly program a large number of devices at once, you can use the CSV file uploader tool on the NextCity Web Portal. The web portal also offers a rapid programming interface to program additional devices later on.
The NextCity Mobile App is ideal for on-site programming, verification, and troubleshooting.
The NextConnect is designed to be easily configured to switch between pulse or encoded meters using the NextCity Mobile App.
Once you've logged into the app, select the Direct Connect tool to connect to the NextConnect. This will allow you to verify or make changes to its configuration.
FAQ
The NextConnect (NC5) is a universal 5G LTE cellular meter endpoint. Capable of supporting fixed-network, walk-by, drive-by, and cellular applications, it’s designed to scale your metering deployments with the simplicity of a single device.
Key benefits
- Built-in 5G LTE cellular
- Single model for cellular, fixed-network, drive-by, and walk-by reading
- Meter+ Technology with protocol auto-detection
- Single model reads all industry standard wire output meters
- 20+ year battery life for maintenance-free operation
- IP-68 rated for outdoor & meter pit installations
The NextConnect works with the NextHydrus and NextHydrus Bulk ultrasonic water meters.
The NextConnect has the following:
- FCC ID: 2A8EC-NC5 (Pending)
- IC: 28950-NC5 (Pending)
- Contains FCC ID: 2ANPO00NRF9151
- Contains IC ID: 24529-NRF9151
Here are some of the main things to be aware of when installing the NextConnect:
- The NextConnect is primarily designed for use in outdoor meter pits
- The device is compatible with pit lid mounting holes from 1.7 to 2.1 inches (43 to 53 mm) in diameter
- Keep the top of the device clear to avoid signal disruptions
- Where possible, the area surrounding the device should be kept free of large objects that could block the signal
- Poly/plastic lids are recommended
- For installations in locations beyond meter pits, NextConnect wall mount accessories are available for purchase. Contact us for more information.
For the full installation process, follow the guide here: NextConnect Installation
Utilizing built-in NextConnect™ wireless technology, the NextConnect has built-in cellular connectivity for direct communications with the cloud, as well as fixed-network, walk-by, and drive-by technology for built-in redundancy. This allows for seamless communication with our cloud-based data management software, ensuring real-time data transmission.
Each technology is always available and can be enabled remotely at any point, ensuring secure, reliable communication even in challenging environments. Smart frequency hopping reduces interference, while bi-directional encryption keeps data private.
To enable a new communication method, select the appropriate subscription tier in the NextCity web portal or mobile app.
The NextConnect battery has a typical longevity of 20+ years
The NextConnect wiring guide is located on both the NextConnect Specifications and Installation Guide as well as the NextConnect Quick Start Guide. You can also find the guide below.
