GW4 Gateway Overview and Documents
Last Updated: Dec 2022

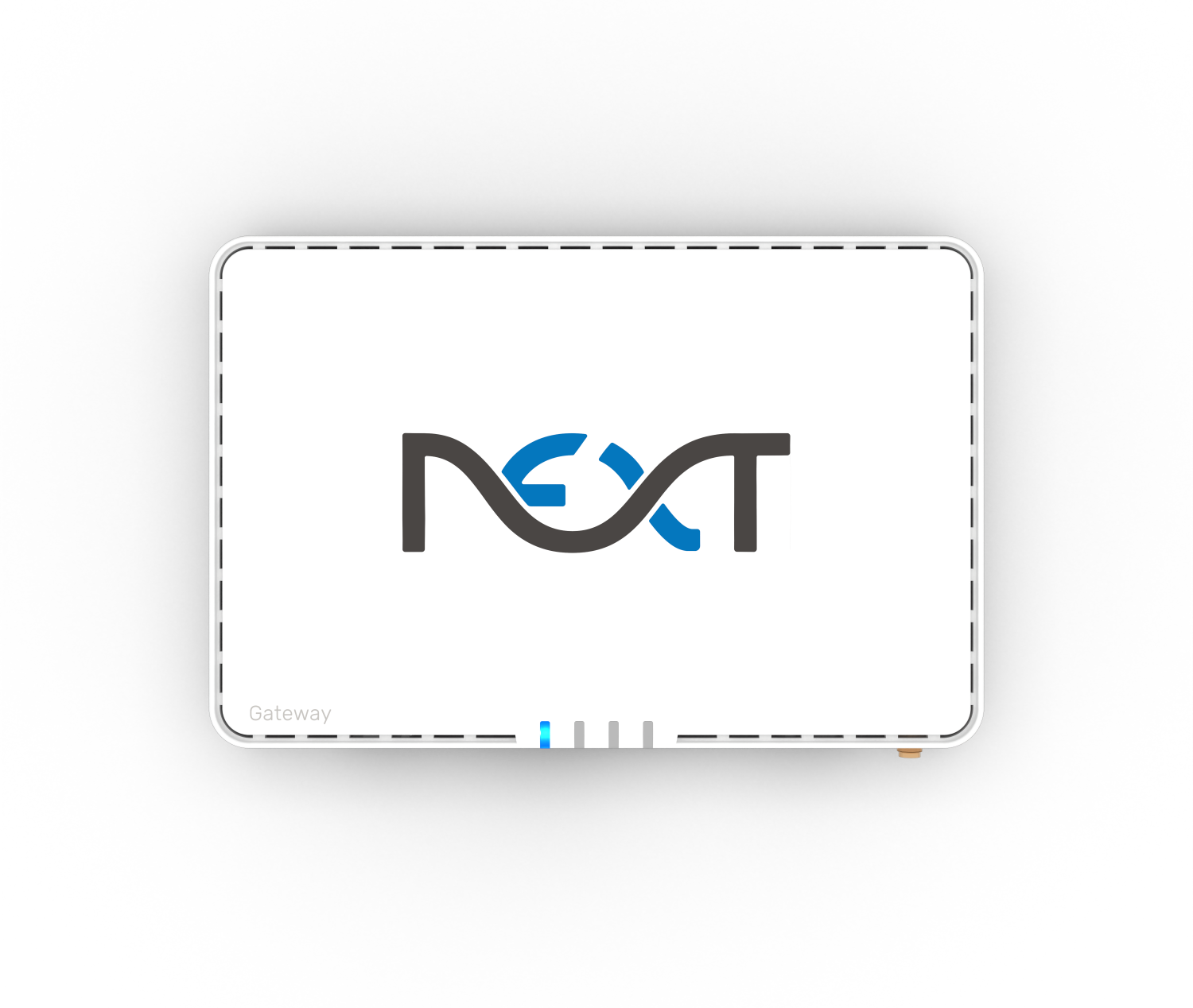

The NextCentury 5G Cellular Gateway introduces the next generation of superior wireless utility management. It includes simple plug-n-play setup and facilitates the communication of thousands of wireless devices on a single property. Seamlessly compatible with all NextCentury Repeater, Remote Reader, and Transceiver models. This cloud-connected Gateway is easily and securely connected to the Internet.

Cloud Connection Options
Engineered for long maintenance-free operation, the GW4 is securely connected to the internet using ethernet, WiFi, or built-in 5G Cellular.

Models

GW4 – Support properties with up to 10,000 units
GW4-Lite – For properties with 50 or fewer units

Models

GW4 – Up to 10k+ Units
GW4-Lite – Up to 50 Units

Certifications

FCC ID: 2AB8I-GW4 | IC: 20949-GW4

Wireless Communication

Two-way NextCentury RF Connect™
902-928 MHz Unlicensed Band

Cellular Data Communication Option

5G & LTE
Simple no-contract subscription

LAN Data Communication Options

Gigabit ethernet
WiFi (2.4 b/g/n/ac)

In-Field Configuration

Advanced configuration options available using the NCSS Mobile App (iOS & Android)

Dimensions

5.1in x 1.2in x 7.7in (129mm x 31mm x 195mm)

Operation Environment

-20°C to 60°C (-4°F to 140°F )
Should be installed in an indoor, dry environment

Power Requirements

120/240 VAC outlet required
15VDC 1A power supply (included)

Document Title	Download
GW4 Gateway Quick Start Guide
GW4 Gateway Specifications and Installation Manual
ISED Certification for GW4
FCC Certification for GW4
DGS Warranty
Plastics in Electronic Applications
Power Usage and Cost Calculator

*Due to updated regulations and product improvements, NextCentury Submetering Systems, LLC reserves the right to change the product specifications without notice.
