Leak Monitoring Overview and Documents
Roles: Admin, Technician
Last updated: May 2025
The Leak Monitoring Solution seamlessly brings advanced water detection to NextCentury installations, making it the simplest and most reliable path to adopting a leak protection solution at your property. With flexible alert notifications, the responsible parties will receive a phone call, text message, and/or email whenever a leak is detected. Residents will also be alerted to the leak with a simple audible chirp.
The complete Leak Monitoring Solution is made up of two parts:
- A Leak Sensor (LS4)
- One of the following leak detection accessories:
- Water Detection Cable (Rope or Targeted)
- Mini Turbine (1/2” or 7/8”)
The accessory you choose will be determined by the needs of your property.
With whatever accessory you select, you’re choosing peace of mind. When a leak is detected, our comprehensive Leak Monitoring Service ensures immediate phone, email, and text notification allowing for immediate and impactful responses.

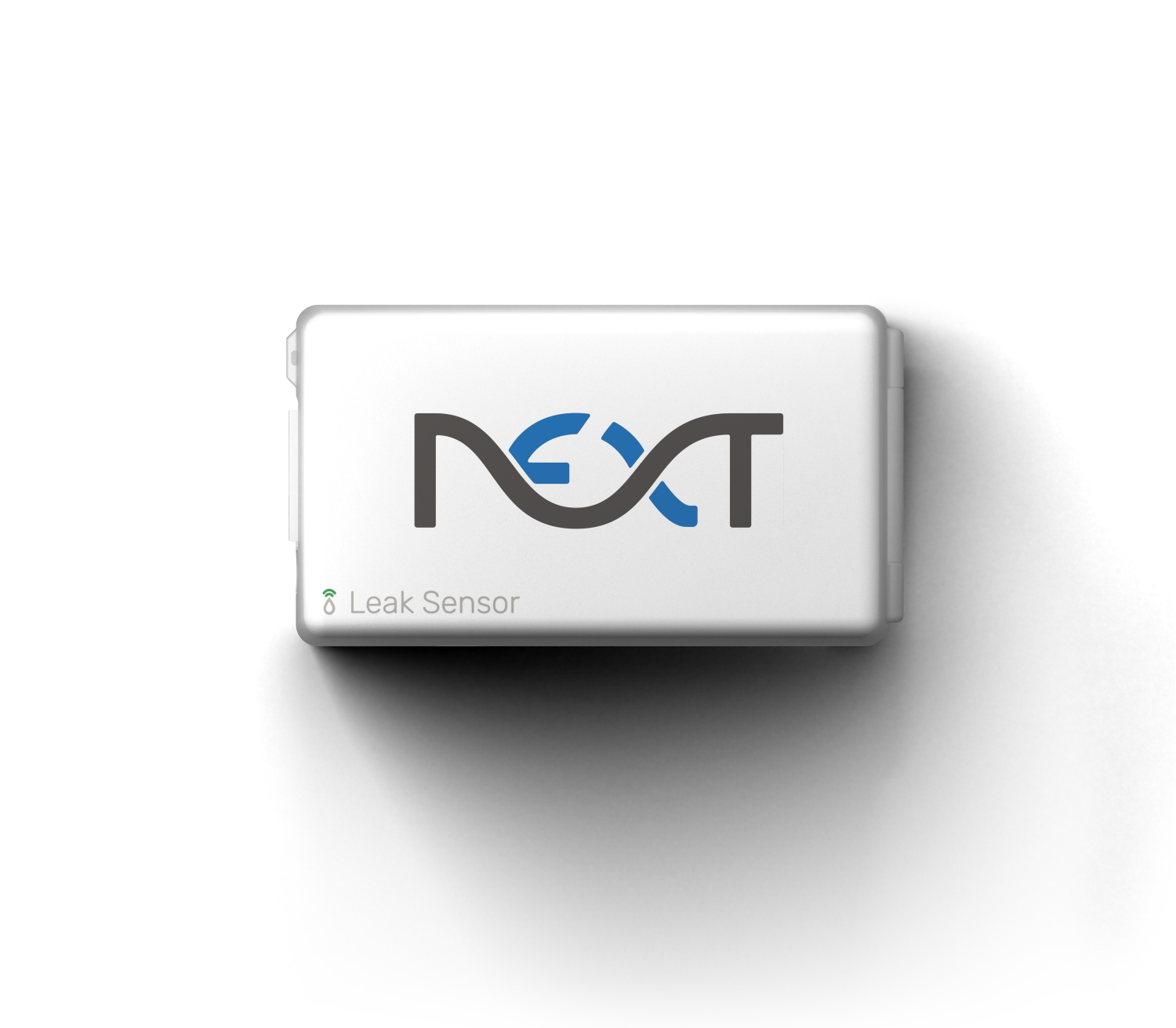

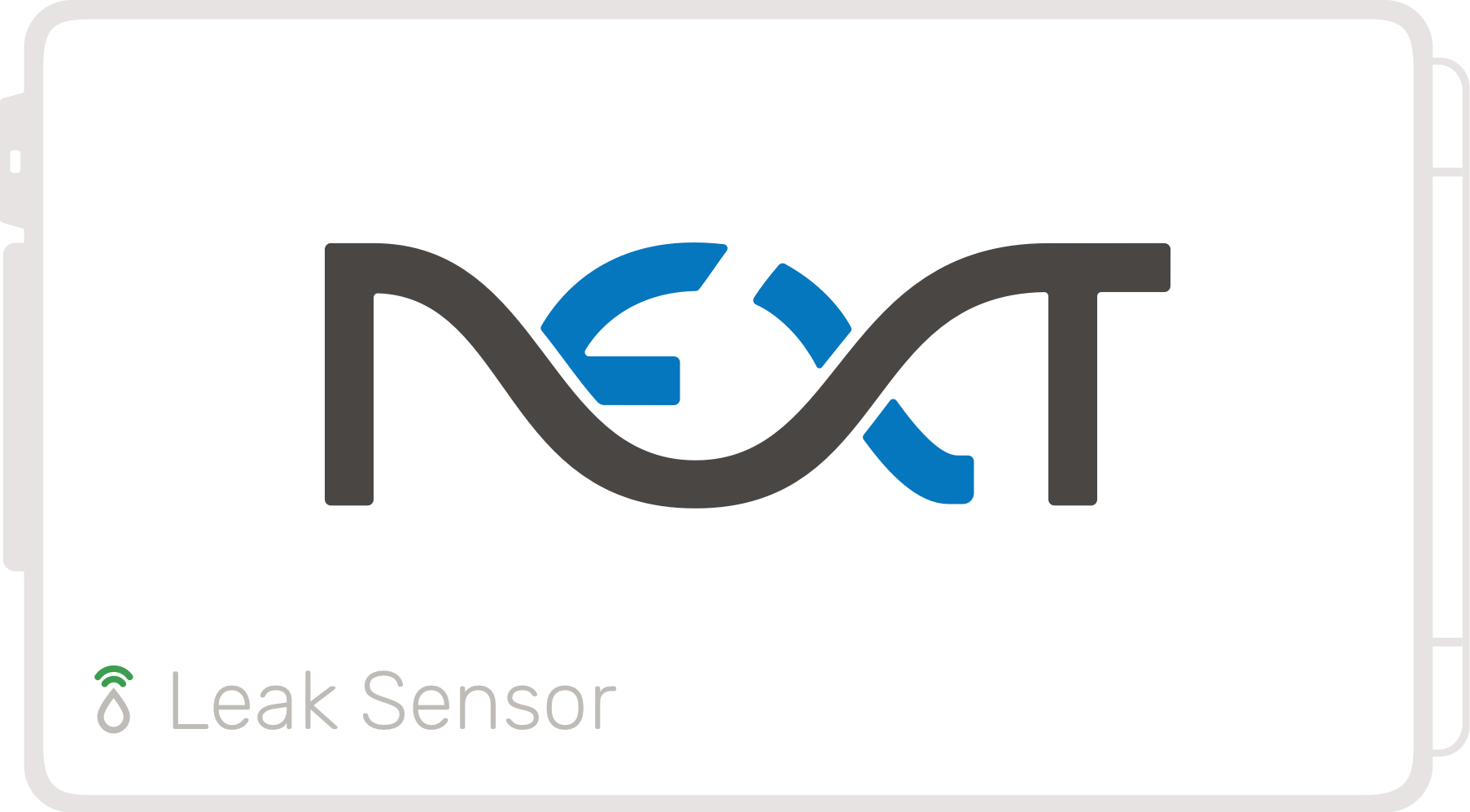

The LS4 Leak Sensor is our industry-leading wireless transceiver with advanced detection and flow analysis capabilities. After it processes the data from the attached accessory, it sends the data to a cloud-connected Gateway—communicating real-time status updates and leak alerts to you as soon as they’re detected.

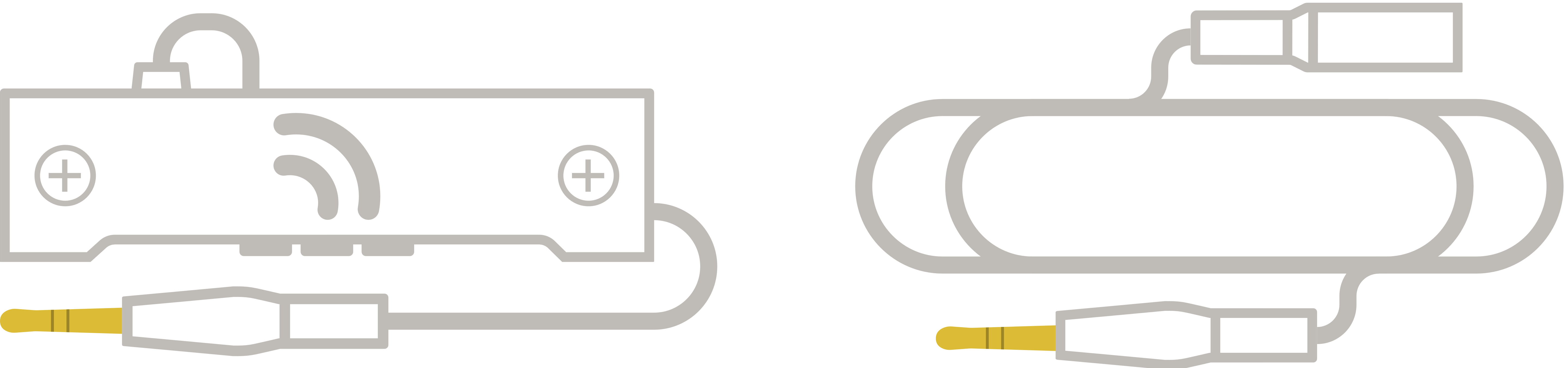

Our durable and fast-drying Rope Cables are quick and easy to install around any drain or supply line. Because they detect water along their whole length, you can set a perimeter around water heaters, dishwashers, and other appliances with multiple potential leak points to ensure you’re always protected.
Our Targeted Cables are designed to only detect water at the end of the cable, allowing for precise area monitoring. This level of precision provides property owners peace of mind with a simple and secure installation in leak-prone areas.
Each water detection cable comes in a standard six foot length. If you need additional coverage, you can mix and match water detection cables to best fit your specific application. Up to three water detection cables can be linked together for extended leak monitoring.

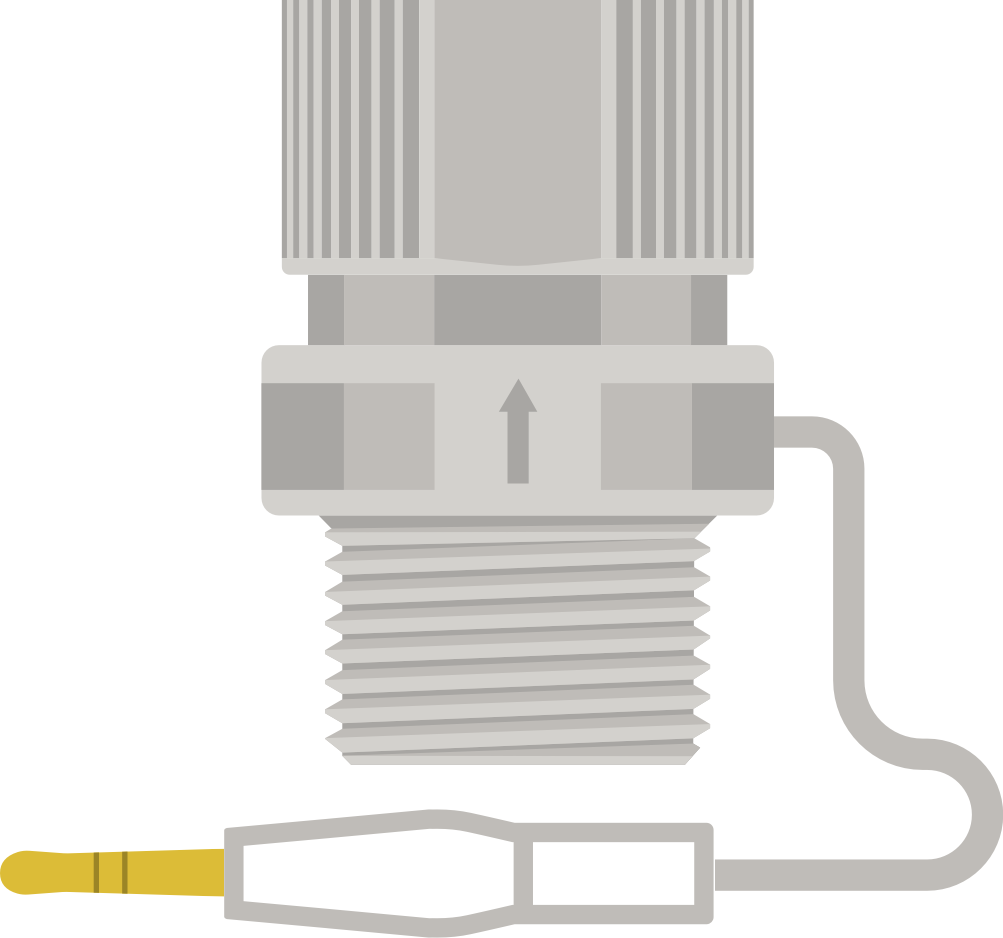

Our Inline Leak Detection Mini Turbines are most commonly installed in locations where inline leaks are likely to occur, such as toilets. In this configuration, the NextCentury Toilet Leak Sensor detects running toilets to notify stakeholders of water waste within their properties, promoting conservation and reducing utility costs. The Toilet Leak Sensor uses proven technology to identify issues in real time.
For information about other uses of our mini turbines, such as point-of-use monitoring, please contact sales@nextmeters.com.
Wireless Communication
- Two-way NextCentury Connect™ 902-928 MHz wireless (Unlicensed Band)
- Wireless reads received by Gateway (required)
- Compatible with all NextCentury Gateways and Repeaters
Data
- 5-month history of device data and status, including leaks, temperature, and total flow information
- Device readiness: battery, RF signal, and tamper
- Configurable immediate alerts and notifications
- Open API access to interval data
Dimensions
- 3.3in x 1.8in x 1.3in (84mm x 46mm x 33mm)
Battery
- Preinstalled, field-replaceable CR18505 battery
- Typical 12-year batter longevity
Monitoring Service
- Simple no-contract monthly subscription
- Property portal for easy on-site management
- Phone, text, and email alert notification
Certifications
- FCC: 2AB8I-LS4 | IC: 20949-LS4
Operation Environment
- 36ºF to 140ºF | 2ºC to 60ºC
- Should be installed in an indoor, dry environment (up to 90% non-condensing humidity)
In-Field Configuration
- Simple programming and verification using the mobile app
- Tone and LED confirmation of installation
Warranty
- All kit components warrantied against defects in manufacture
- Term of 3 years from the date of manufacture
- For full details, see Data Gathering System Warranty
Applications
- Near supply lines, under sinks, and around appliances that use water (dishwashers, refrigerators, clothes washers, water heaters, etc.)
Leak Detection
- Targeted Cable: Detects water at a single point at the end of 6' cable
- Rope Cable: Detects water along the full 6' length of cable
Operating Environment
- 36ºF to 140ºF | 2ºC to 60ºC
- Should be installed in an indoor, dry environment (up to 90% non-condensing humidity)
In-Field Setup
- Simple programming and verification using the mobile app
- Tone and LED confirmation of installation
Warranty
- All kit components warrantied against defects in manufacture
- Term of 3 years from the date of manufacture
- For full details, see Data Gathering System Warranty
Applications
- MT22: 7/8” toilet connections
- MT12: 1/2” supply lines (sinks, showers, etc.)
- NSF/ANSI 61 for potable water use
- Designed to meet AWWA accuracy standards
- Water up to 150ºF | 66ºC
Flow Detection
- Detects leaks as low as 0.2 GPM
- Maximum 5 GPM
Pressure
- Maximum of 150 PSI
- Pressure drop 0.75 PSI at 2 GPM
Operating Environment
- 36ºF to 140ºF | 2ºC to 60ºC
- Should be installed in an indoor, dry environment (up to 90% non-condensing humidity)
In-Field Setup
- Simple programming and verification using the mobile app
- Tone and LED confirmation of installation
Warranty
- All kit components warrantied against defects in manufacture
- Term of 3 years from the date of manufacture
- For full details, see Data Gathering System Warranty
Document Title
Download
Leak Monitoring Quick Start Guide
Leak Monitoring Specifications and Installation Guide
Leak Monitoring Info for Residents
Toilet Leak Sensor Case Study
Leak Monitoring ROI Calculator
IC Certification for LS4
FCC Certification for LS4
DGS Warranty
Plastics in Electronic Applications
*Due to updated regulations and product improvements, Next Meters reserves the right to change the product specifications without notice.
