Overview
RF relay that carries Transceiver signals to the property's Gateway.
Replaced by a newer product
The RE201 Repeater has been replaced by the RE4 Repeater.
The RE201 Repeater serves as an RF relay from Transceiver endpoints to the property Gateway. A property's need for Repeaters is determined by distance, interference, and physical obstruction between Transceiver endpoints and the Gateway. Signals can travel between multiple Repeaters to reach the property's Gateway.
Specifications
Connectivity
| Wireless Specifications | 5+ mile line-of-site range +30dBm signal strength Dual antennas Redundant network paths |
|---|
Physical and power
| Operation | Plug and Play Built-in network tester Power backup Typical power usage is less than 4¢ monthly electricity cost Plug and Play |
|---|
Certifications
| Certifications | FCC: 2AB8I-RE-40-214 IC: 20949-RE40214 |
|---|
Installation
What's in the box
- RE201 Repeater
- 12V 1A power supply
- Mounting plate with 3M tape
- Package of fasteners
Before you start
- For the best coverage, mount the Repeater as high up on the property as you can.
- Make sure the power supply will reach an outlet.

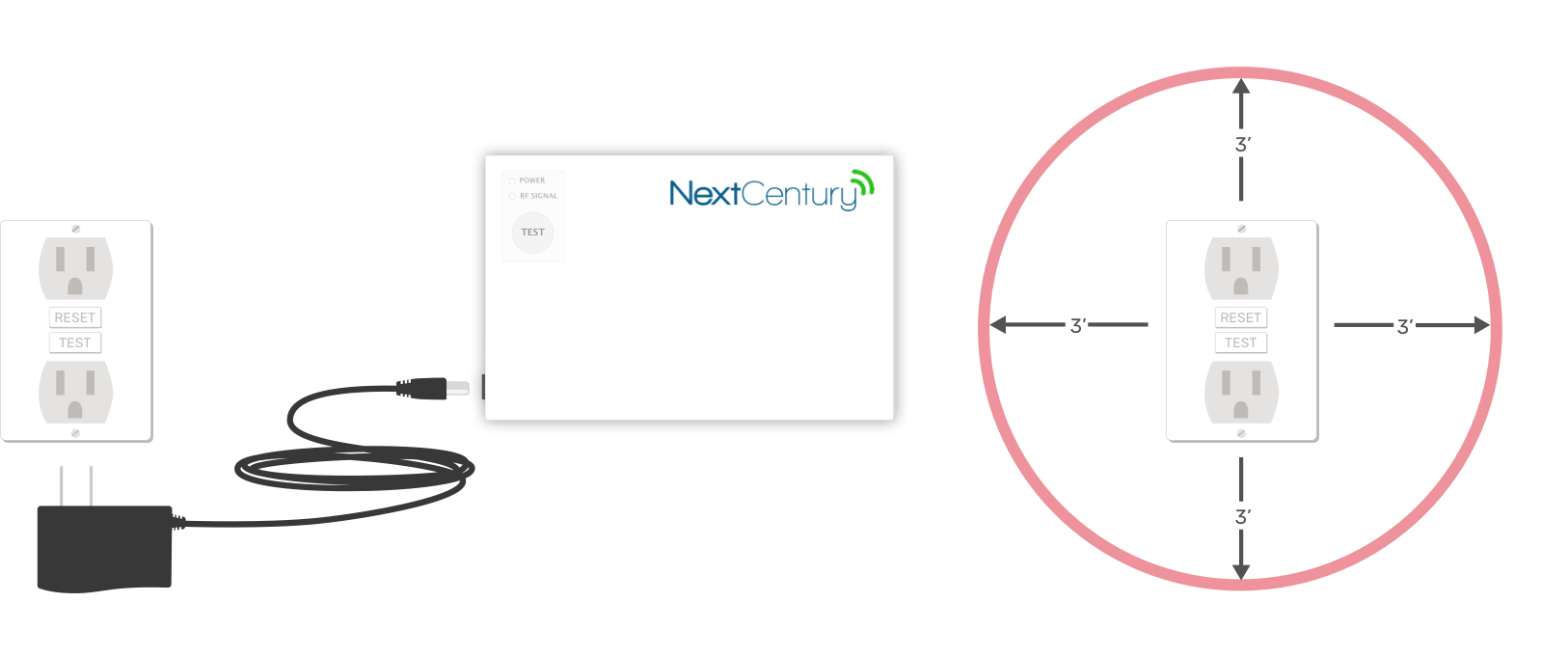

- Keep the Repeater at least 3 feet away from GFCI outlets.
- If the Repeater will be outdoors and exposed to the weather, house it in a suitable NEMA-rated plastic enclosure.
Install the Repeater
Mount the Repeater
Slide the mounting plate off the back of the Repeater.
Secure the plate to the wall with the included screws and drywall anchors, or peel the backing off the 3M tape and press the plate onto a clean wall.
Slide the Repeater back onto the mounting plate.
Power the Repeater
Plug the power supply into the Repeater and into the outlet.
Confirm it connects to its Gateway
Watch the Power light. Solid green means the Repeater is powered on but not yet synced with its Gateway; solid blue means it’s synced.
If it doesn’t sync on its own, press the Test button to send a sync message.
Press Test again to check the connection. The RF light blinks green twice when the Gateway receives the message.
Note
If the Repeater loses power, the Power light turns red and the Repeater switches to backup power, which lasts long enough to tell its Gateway about the power loss.

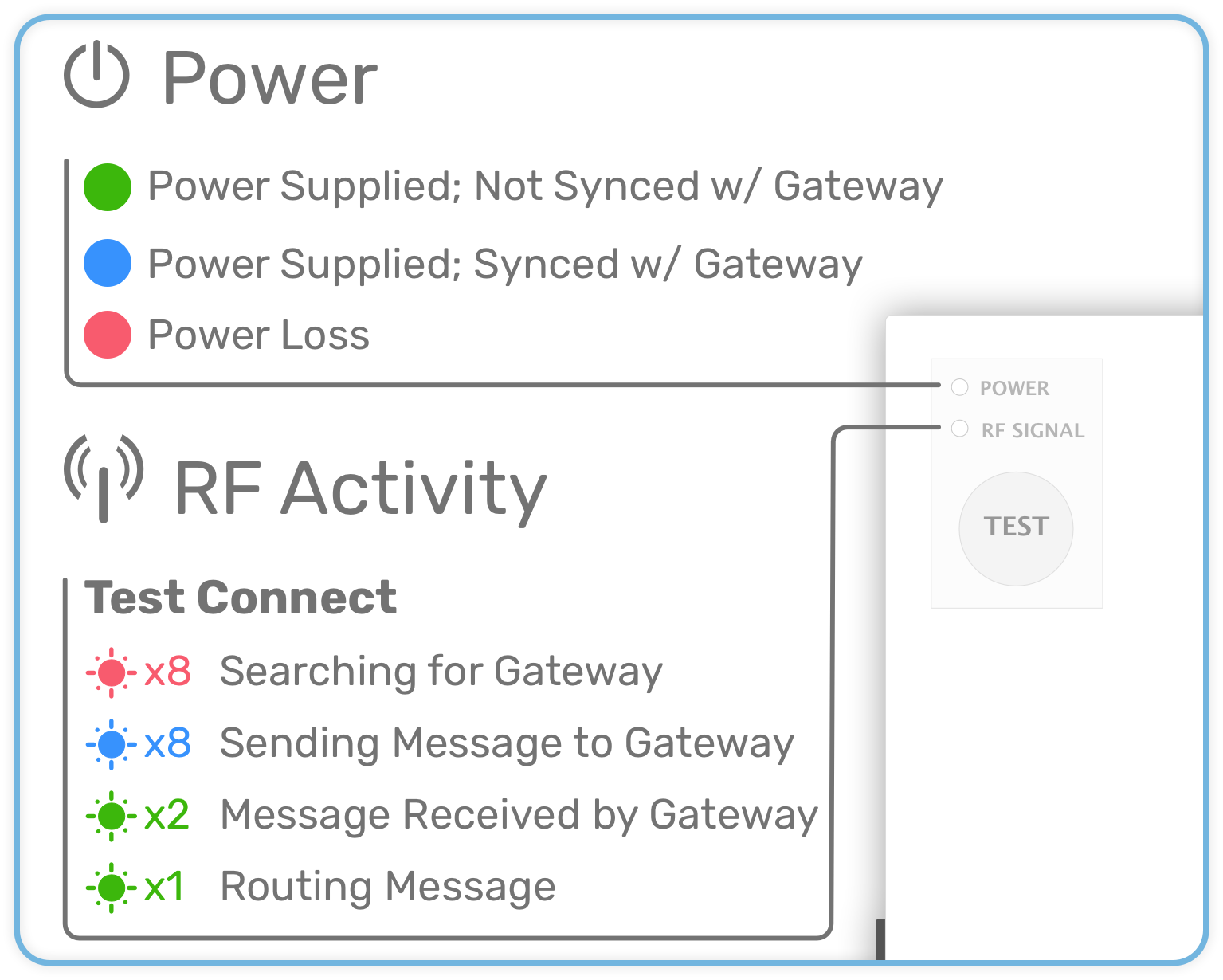

Repeater lights
Power light
| Solid red | No power |
|---|---|
| Solid green | Powered on, not synced with its Gateway |
| Solid blue | Powered on and synced with its Gateway |
RF light
| 8 quick red blinks | Searching for the Gateway to sync with |
|---|---|
| 8 quick blue blinks | Sending a message to its synced Gateway |
| 2 green blinks | The Gateway received the message |
| 1 quick green blink | Passing along (routing) a message |
FAQ
Yes, if the solar powered battery system is able to stay powered at all times and effectively supply the needed power requirements. Please contact our support team for help calculating the electricity demand for a specific Repeater.
If powered by a solar powered battery system, the Repeater will need a compatible power supply that meets the following requirements:
- 6V-20V DC input power (12V Typical)
- Spike power usage of 450mA
- Continuous Power Rating of 2 Watts @ 12 Volts
Some GFCI models are not well-shielded and are susceptible to nuisance tripping caused by two-way radios or other radio-emitting devices.
The radio frequency from a NextCentury Repeater or Gateway can also cause a trip when it is in close proximity to a GFCI receptacle. Installing Repeaters at least 3 feet away from a GFCI receptacle should prevent any nuisance tripping.
The LEDs indicate the device's power status and the connection to its Gateway.
