Leak Monitoring

Overview

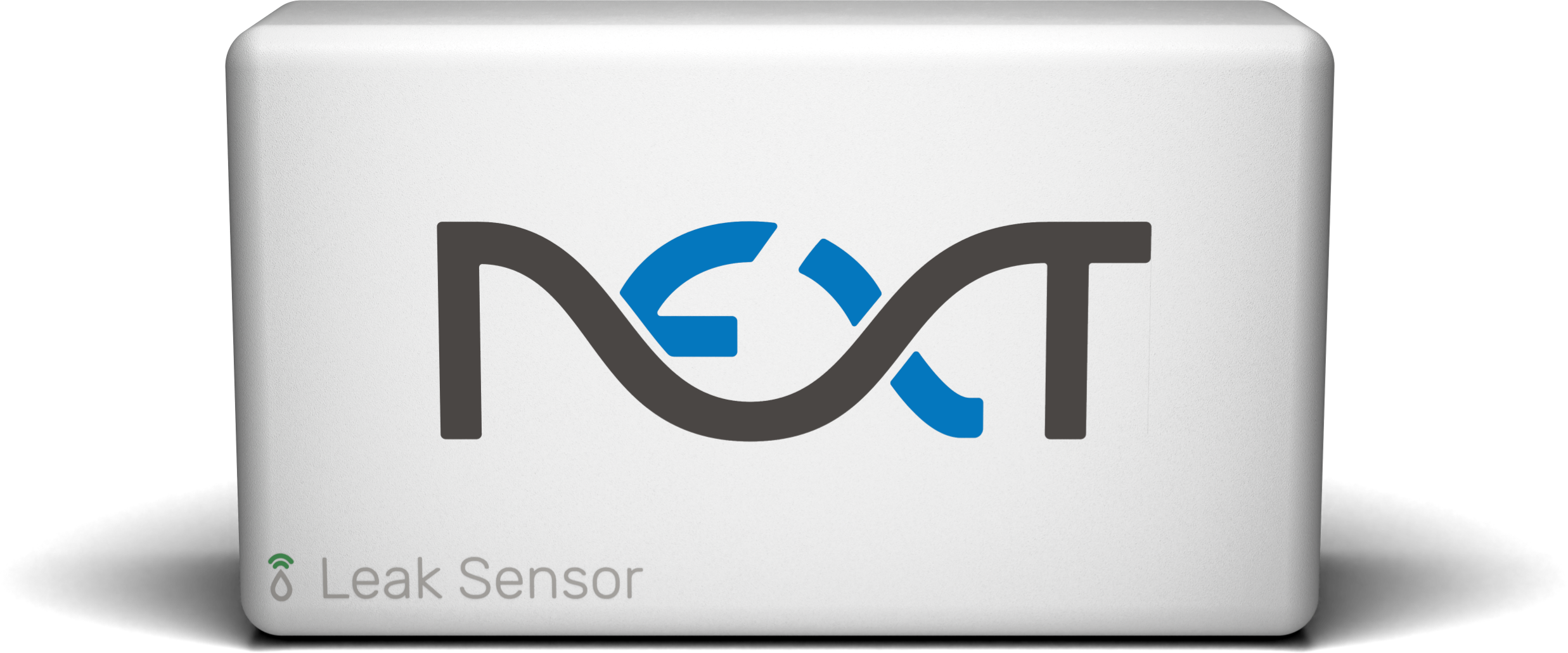

The LS4 Leak Sensor: a small white rectangular box with the NEXT logo across the front and the words Leak Sensor, with a small water-drop and signal icon, in the lower-left corner.

Leak sensors, detection cables, and turbines with instant alerts.

The Leak Monitoring Solution seamlessly brings advanced water detection to NextCentury installations, making it the simplest and most reliable path to adopting a leak protection solution at your property. With flexible alert notifications, the responsible parties will receive a phone call, text message, and/or email whenever a leak is detected. Residents will also be alerted to the leak with a simple audible chirp.

The complete Leak Monitoring Solution is made up of two parts:

  • A Leak Sensor (LS4)
  • One of the following leak detection accessories:

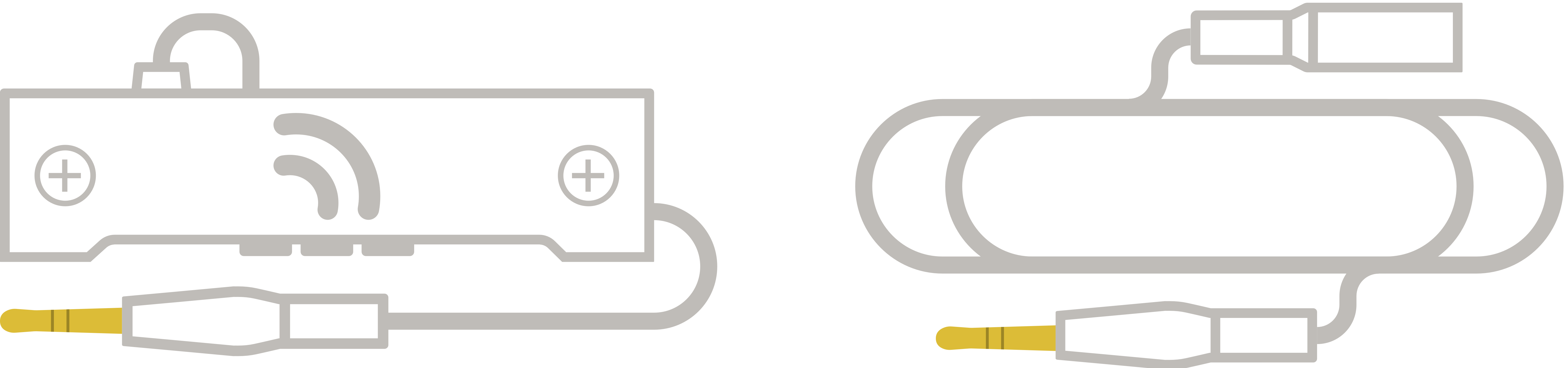

    • Water Detection Cable (Rope or Targeted)

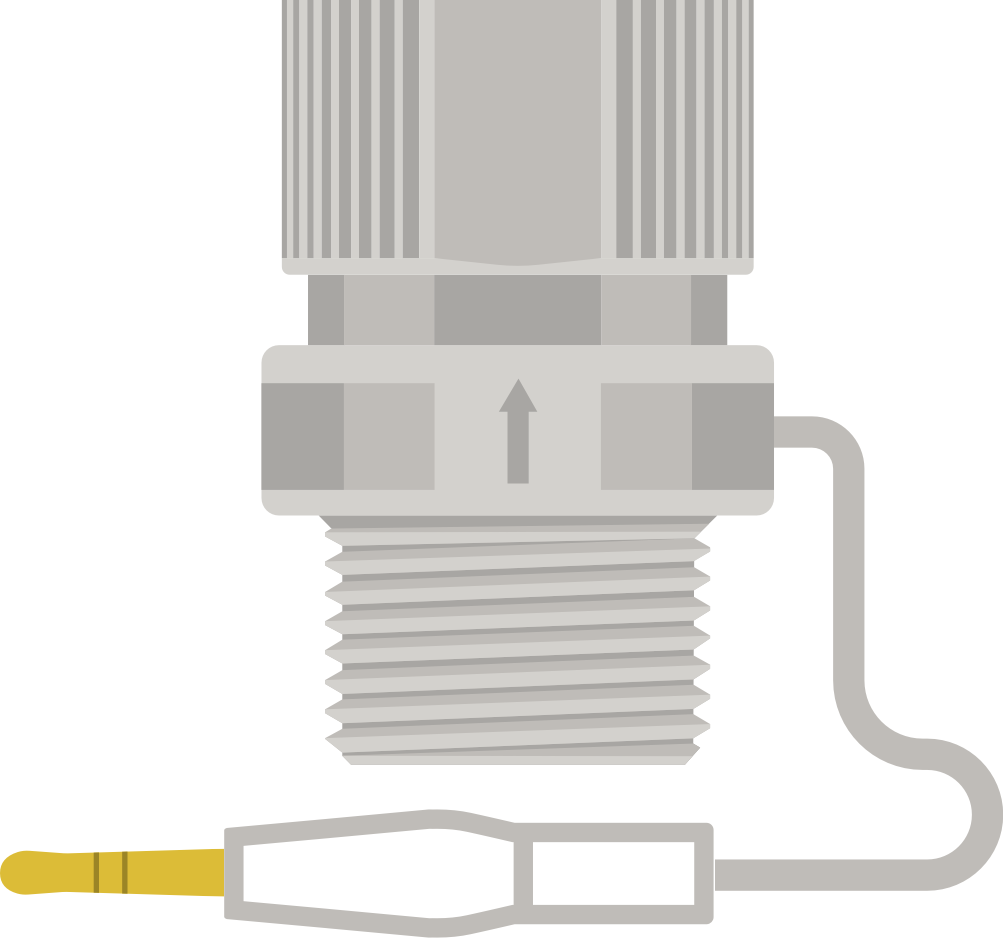

    • Mini Turbine (1/2” or 7/8”)

The accessory you choose will be determined by the needs of your property.

With whatever accessory you select, you’re choosing peace of mind. When a leak is detected, our comprehensive Leak Monitoring Service ensures immediate phone, email, and text notification allowing for immediate and impactful responses.



Components

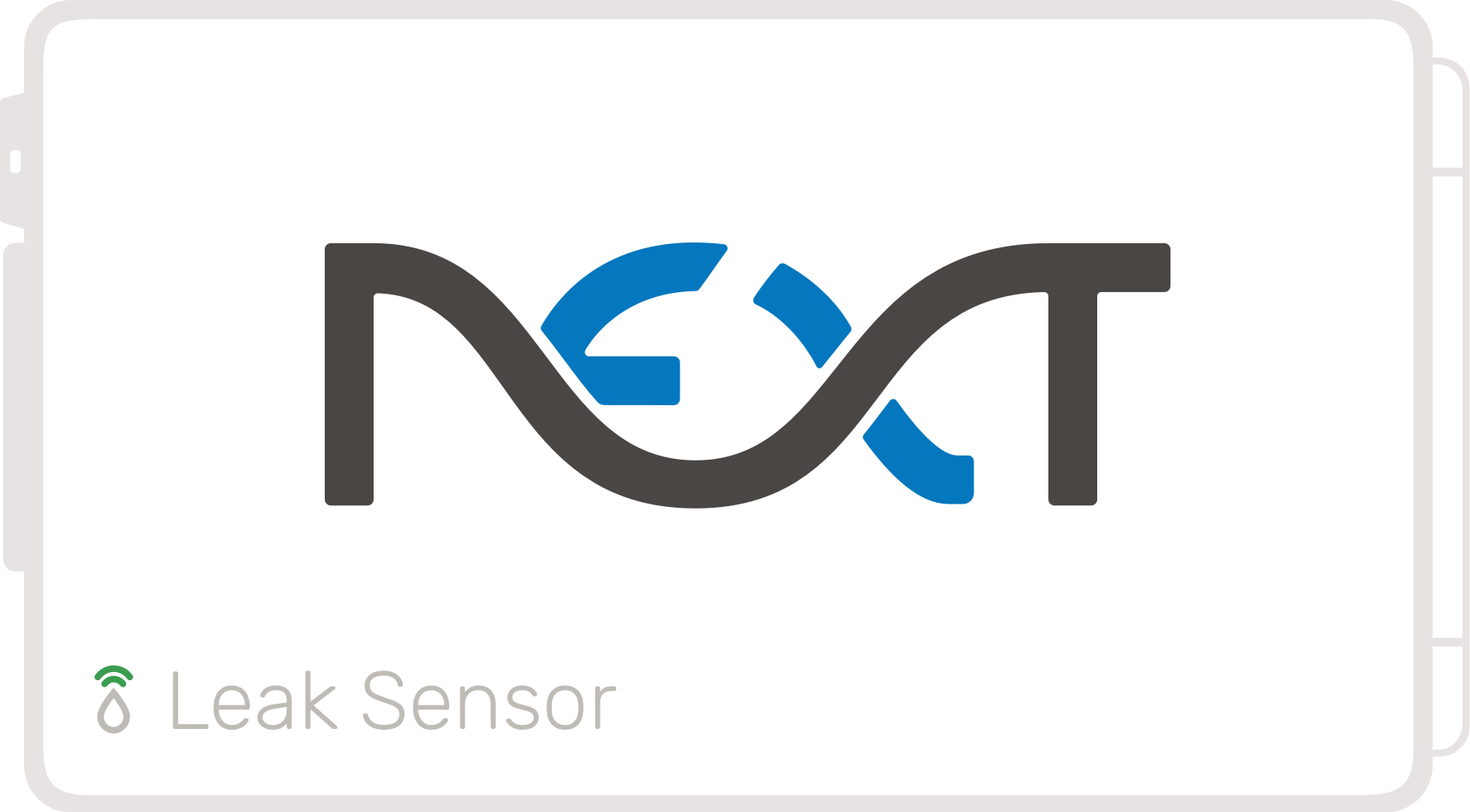

Front view of the LS4 Leak Sensor: a white box with the NEXT logo in the center, Leak Sensor in the lower-left corner, and small tabs on its left and right sides.



The LS4 Leak Sensor is our industry-leading wireless Transceiver with advanced detection and flow analysis capabilities. After it processes the data from the attached accessory, it sends the data to a cloud-connected Gateway—communicating real-time status updates and leak alerts to you as soon as they’re detected.

Specifications

Connectivity

Wireless Communication Two-way NextCentury Connect™ 902-928 MHz wireless (Unlicensed Band)
Wireless reads received by Gateway (required)
Compatible with all NextCentury Gateways and Repeaters
In-Field Configuration Simple programming and verification using the mobile app
Tone and LED confirmation of installation

Physical and power

Dimensions 3.3in x 1.8in x 1.3in (84mm x 46mm x 33mm)
Battery Preinstalled, field-replaceable CR18505 battery
Typical 12-year batter longevity
Operation Environment 36ºF to 140ºF | 2ºC to 60ºC
Should be installed in an indoor, dry environment (up to 90% non-condensing humidity)

Certifications

Certifications FCC: 2AB8I-LS4 | IC: 20949-LS4

More details

Data 5-month history of device data and status, including leaks, temperature, and total flow information
Device readiness: battery, RF signal, and tamper
Configurable immediate alerts and notifications
Open API access to interval data
Monitoring Service Simple no-contract monthly subscription
Property portal for easy on-site management
Phone, text, and email alert notification
Warranty All kit components warrantied against defects in manufacture
Term of 3 years from the date of manufacture
For full details, see Data Gathering System Warranty

Installation

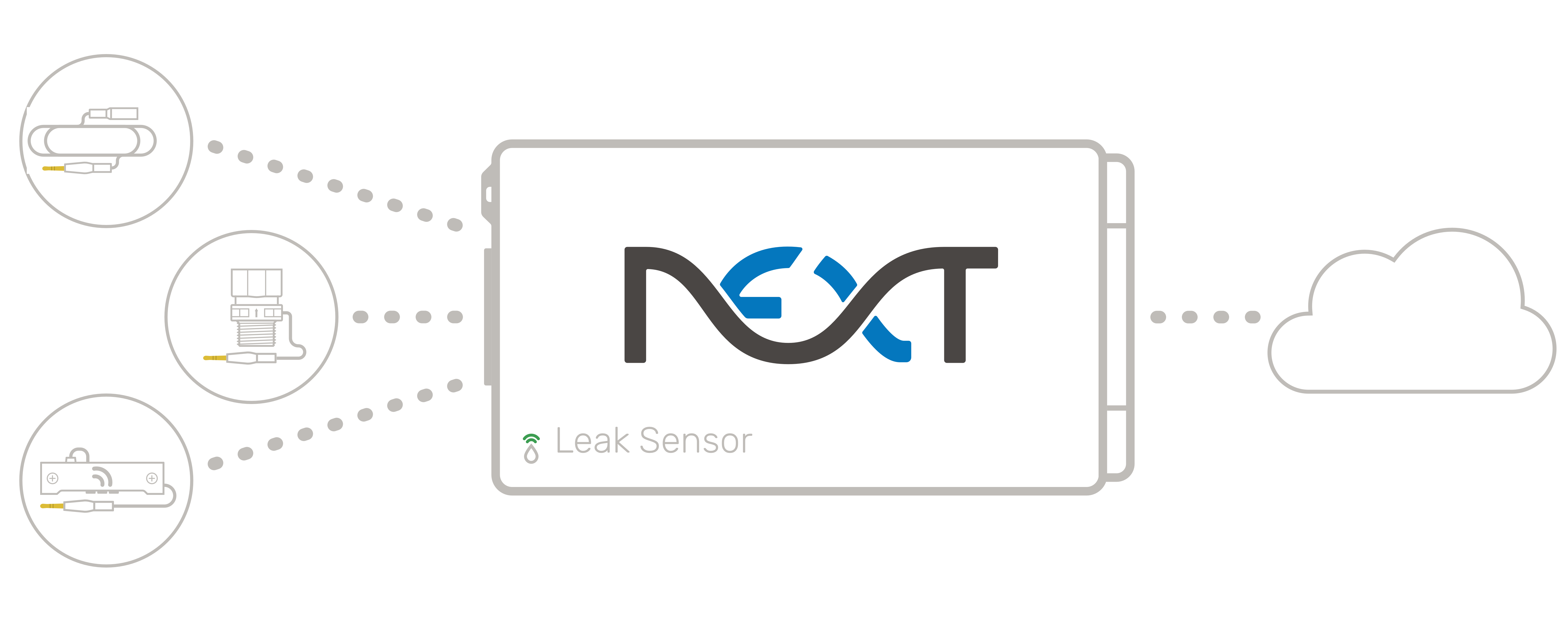

How the Leak Monitoring Solution connects: three accessories on the left, a Rope Cable, a Mini Turbine and a Targeted Cable, are each linked by a dotted line to the LS4 Leak Sensor in the middle, which is linked by a dotted line to a cloud on the right.

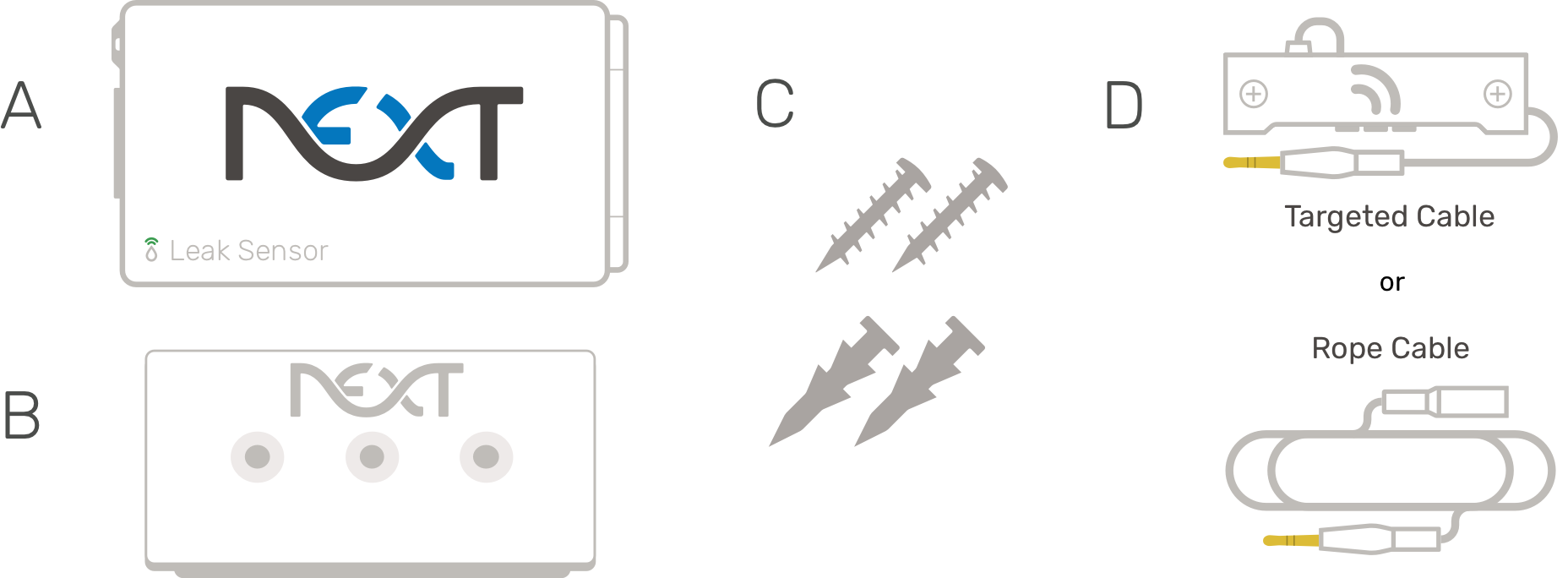

What's in the Water Detection Cables kit, labeled A to D: A, the LS4 Leak Sensor; B, the mounting plate; C, two screws and two sheetrock anchors; D, a Water Detection Cable, either the Targeted Cable or the Rope Cable.

A - LS4 Leak Sensor

B - Mounting Plate

C - Screws & Sheetrock Anchors

D - Water Detection Cables

Install the Leak Sensor


Mount the Leak Sensor

General Mounting Guidelines

Install the Leak Sensor near the desired detection area in an accessible, dry location above the level of the monitoring area. If using adhesive to mount the device, clean the wall surface first.

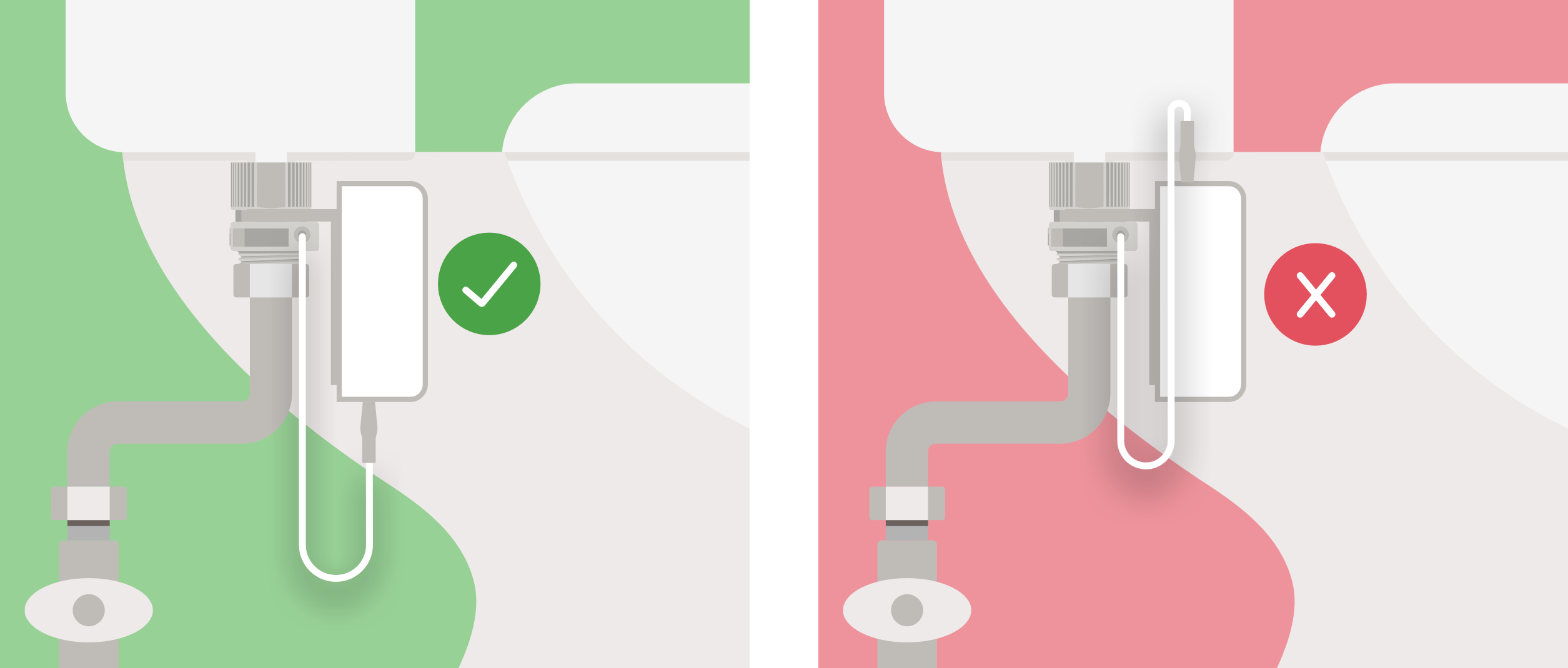

If the device is mounted vertically, the Leak Sensor's cable connection point must face the floor when mounted. The device's hinge will face upward.


Remove the mounting plate from the Leak Sensor.

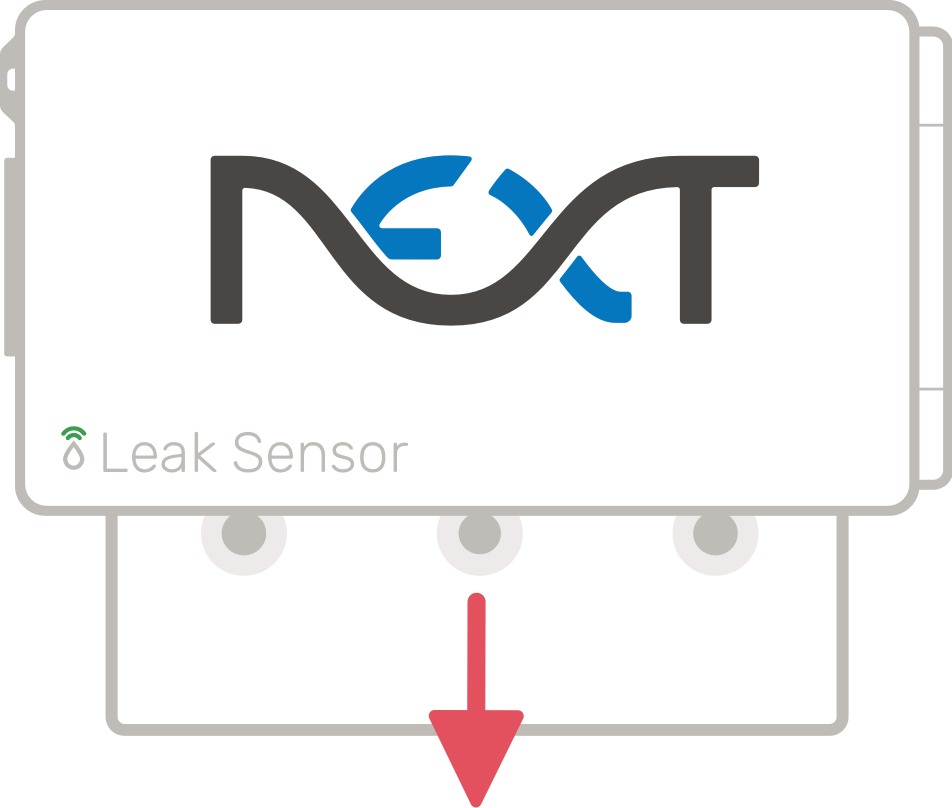

Remove the mounting plate: the Leak Sensor, with the mounting plate partly slid out from under its bottom edge. A red arrow points down: slide the plate down and off the Leak Sensor.



Anchor the mounting plate using the included hardware or adhesive. If using the adhesive, it's recommended to clean the surface where the sensor will be mounted prior to mounting for better adhesion.

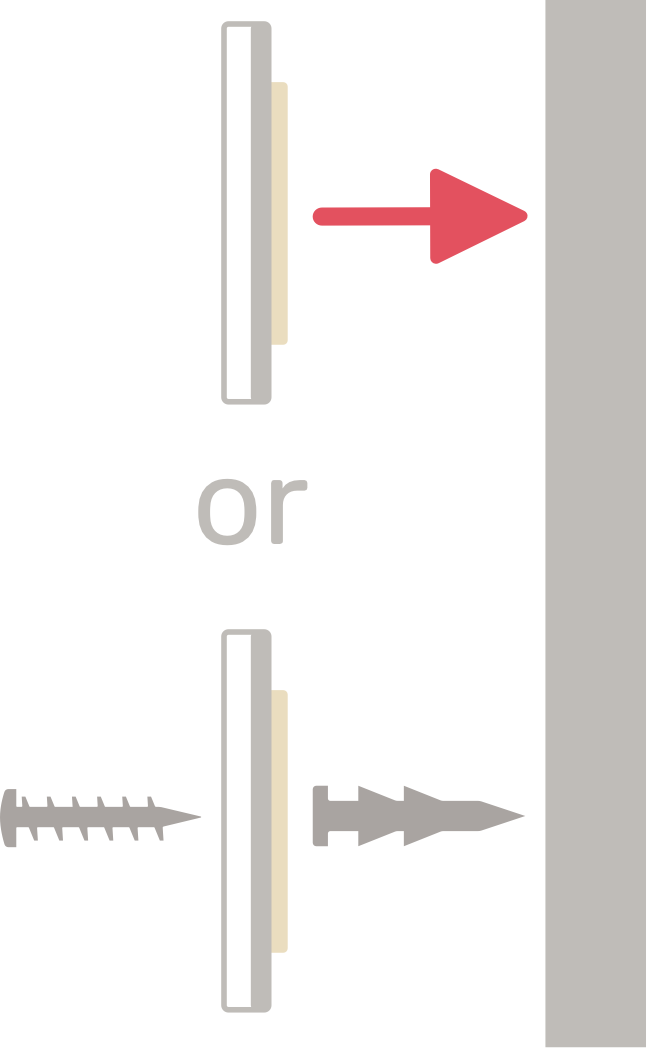

Side view of the mounting plate going onto the wall, two ways. Top: the plate with its adhesive strip facing the wall and a red arrow pointing toward the wall, to stick it on. Then the word or. Bottom: a screw on the left, the plate, and a sheetrock anchor between the plate and the wall: the screw goes through the plate into the anchor.



Slide the Leak Sensor back onto the mounting plate.

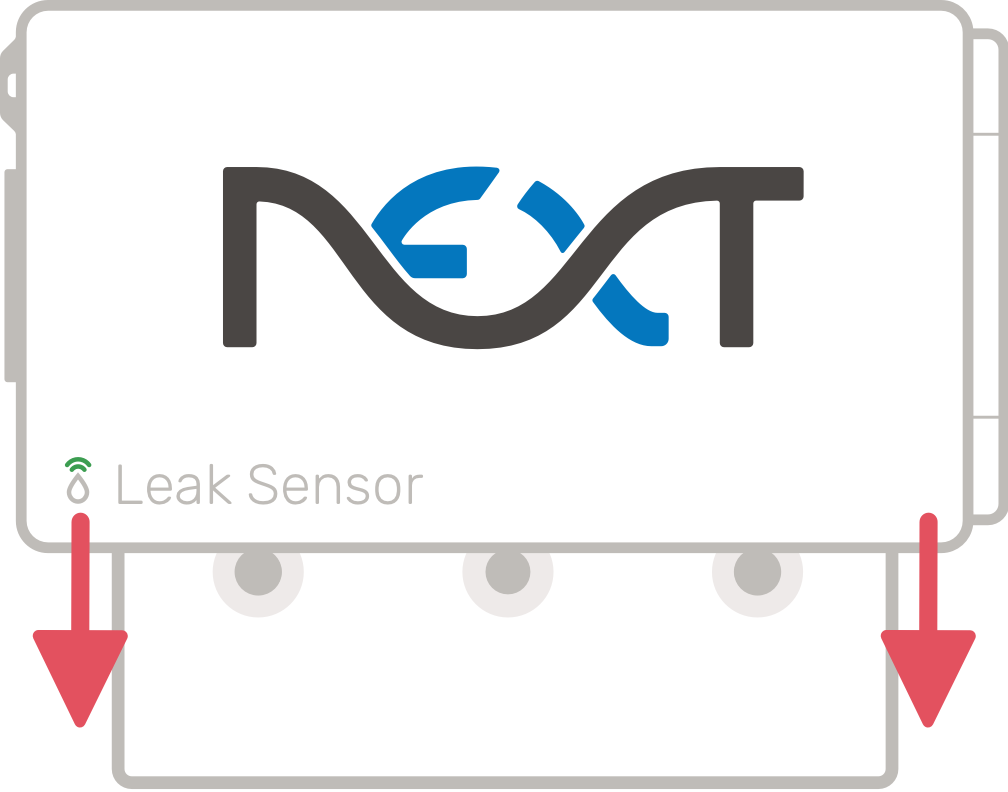

Slide the Leak Sensor back onto the mounting plate: the Leak Sensor sits just above the plate, and red arrows at its lower-left and lower-right corners point down.

Connect the selected Water Detection Cable

Connect the Water Detection Cable to the Leak Sensor. A tone confirms that the cable is connected correctly.

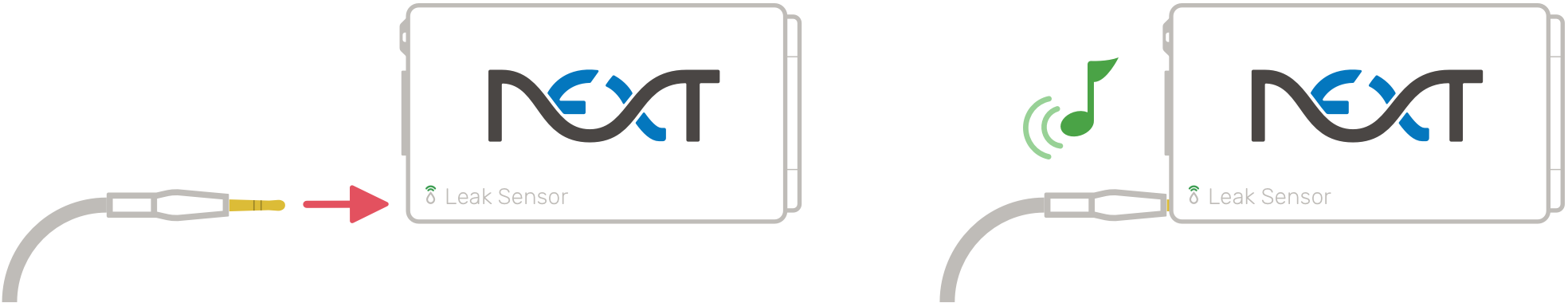

Connect the Water Detection Cable, in two steps. Left: the cable's gold plug, with a red arrow pointing right at the lower-left edge of the Leak Sensor. Right: the plug is in, and a green musical note with sound waves shows the tone that confirms the connection.



For the Rope Cable, route and secure the cable. Water will be detected anywhere along the cable.

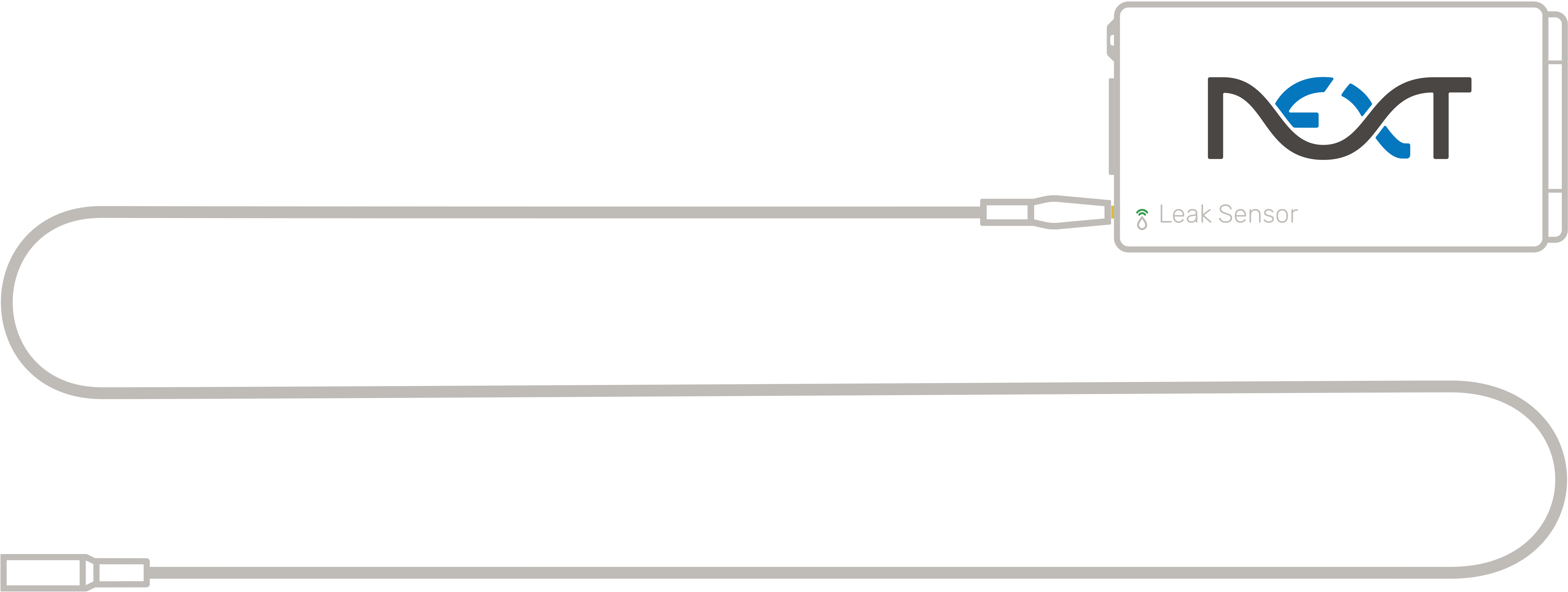

A Rope Cable connected and routed: the cable runs from the lower-left edge of the Leak Sensor in a long loop to the left and back underneath, ending in a connector.



For the Targeted Cable, secure the probe to a flat surface using the provided hardware. Water will only be detected at the end of the cable at the contact points.

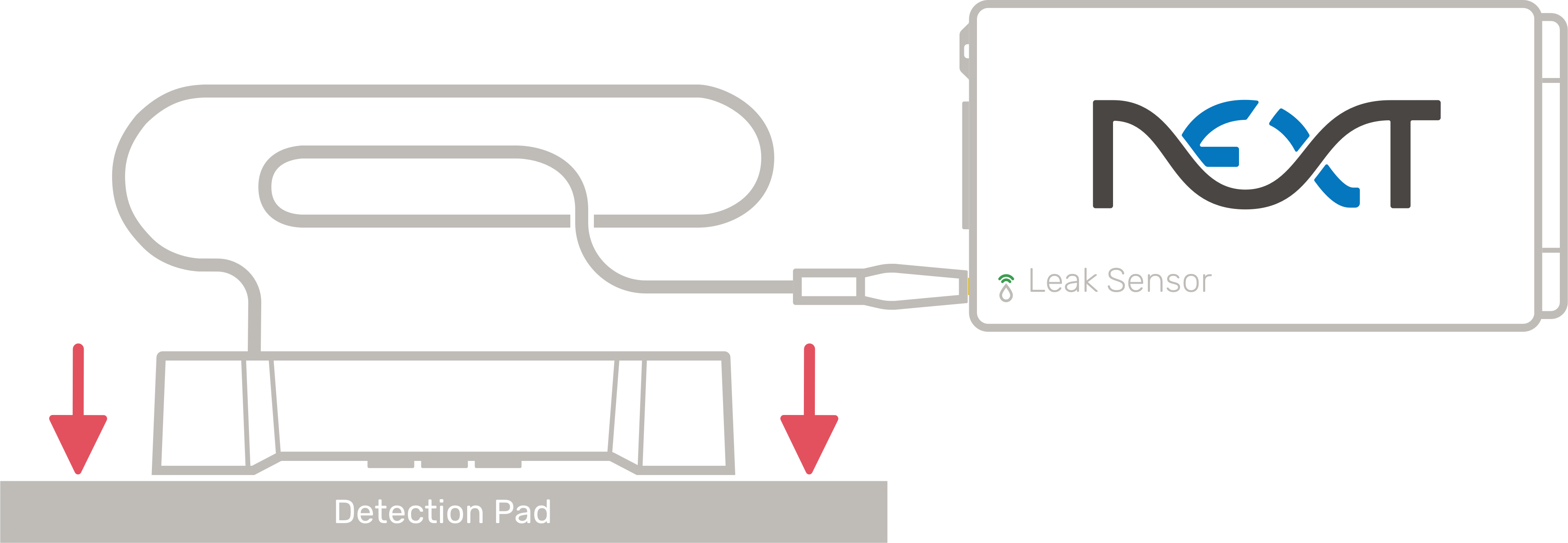

A Targeted Cable installed: the Leak Sensor at the upper right, with its cable looping round and down to the Targeted Cable's probe. Two red arrows point down at the ends of the probe, pressing it flat onto a gray surface labeled Detection Pad.



For multi-point detection, connect up to two additional Water Detection Cables to extend the detection area up to 18 feet.

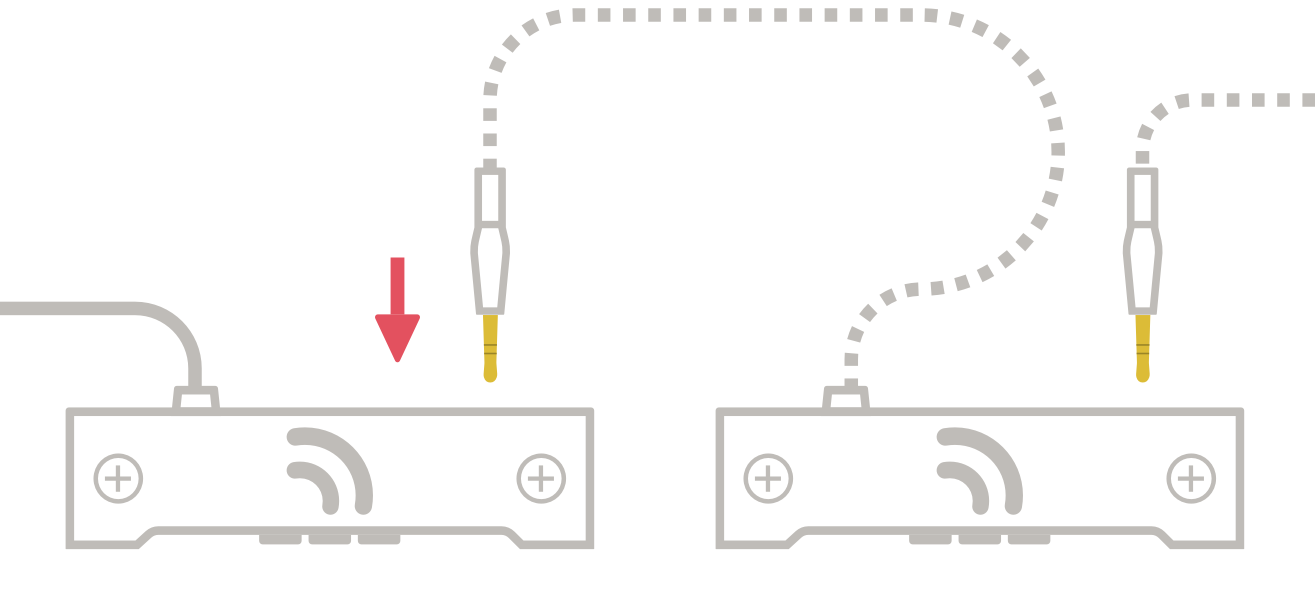

Linking Water Detection Cables: two Targeted Cable probes side by side. The left probe's cable leads off to the left. A red arrow points down at the top of the left probe, where the gold plug of the next cable goes in; that cable, drawn dotted, runs over to the right probe, and another plug beside the right probe has a dotted cable leading off to the right, for one more.

Verify Leak Sensor Configuration

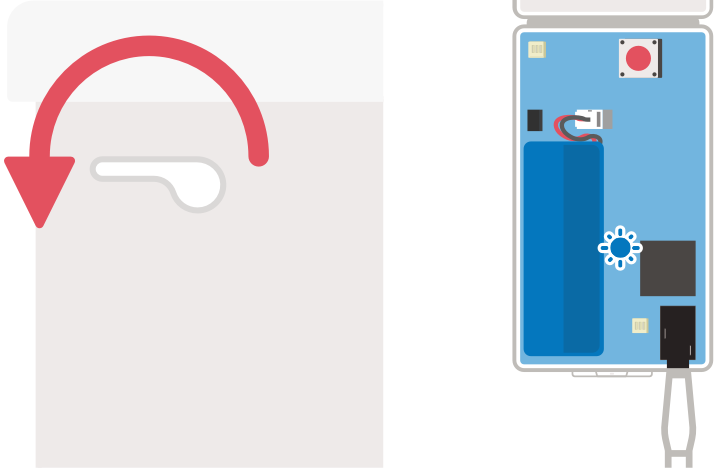

Ensure the Leak Sensor is set to the correct monitoring mode by opening the Leak Sensor's cover and holding the red button for five seconds. This will enter the device's configuration mode.

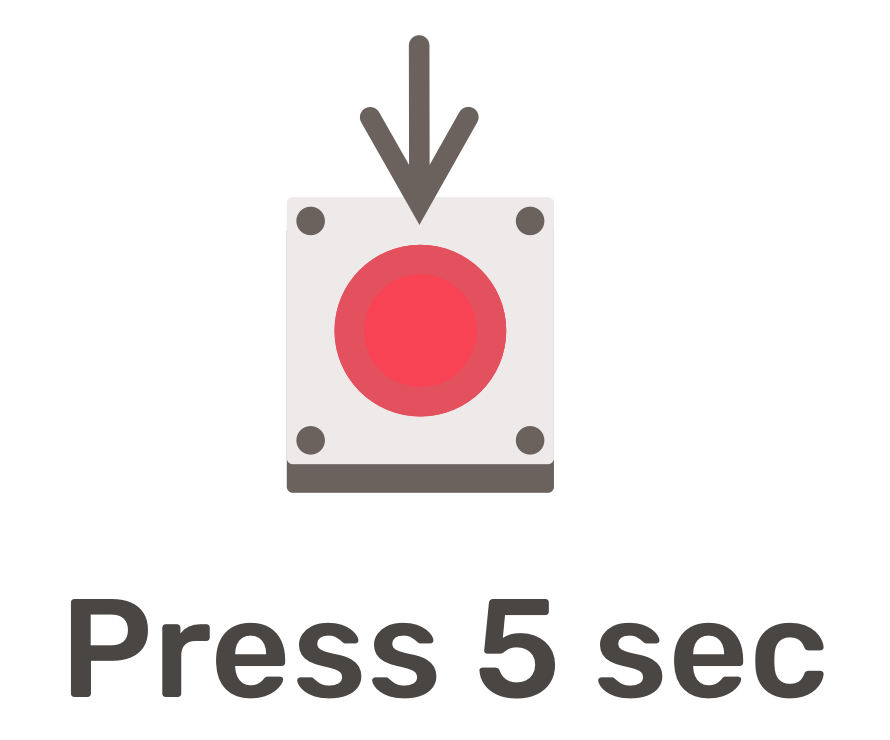

A red button with an arrow pressing down on it, and the words Press 5 sec: hold the red button for five seconds.

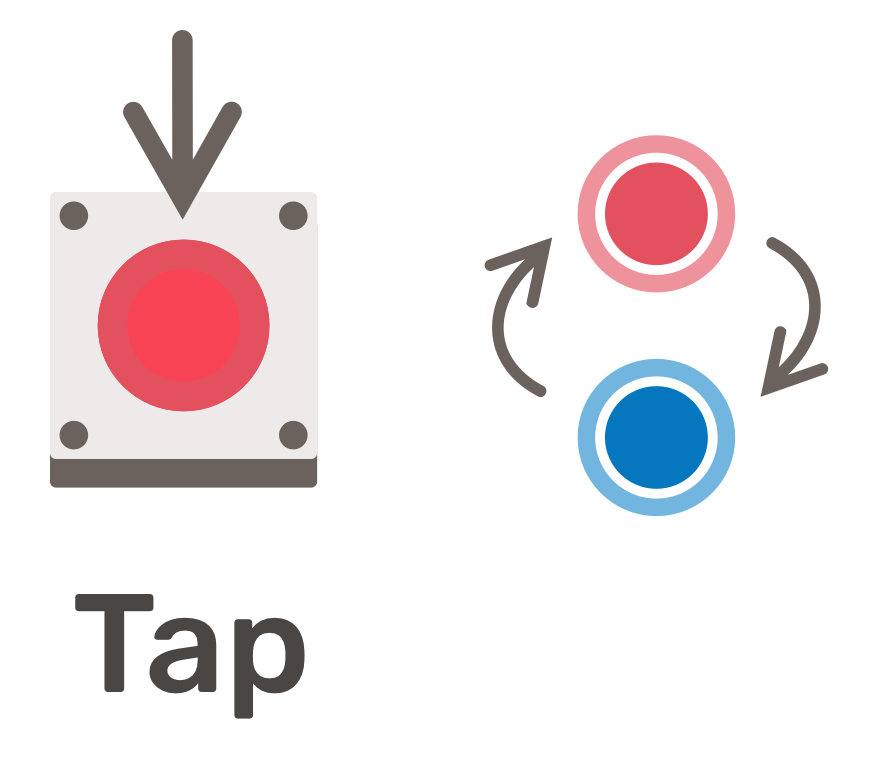

While in configuration mode, press the button again to toggle between modes until the LED matches the application.

Left: the red button with an arrow pressing down on it, and the word Tap. Right: a red LED and a blue LED with curved arrows between them: each tap switches between the two.

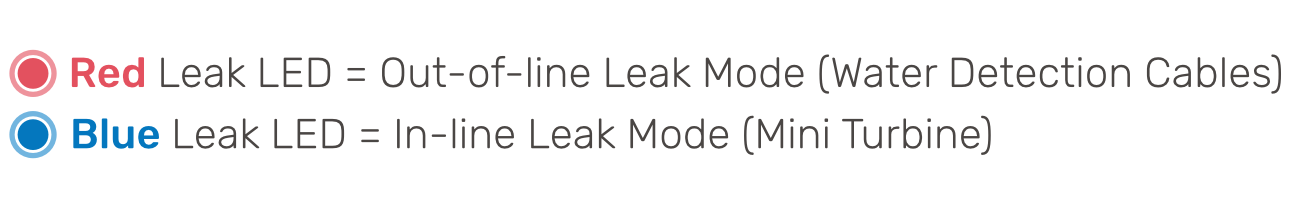

LED colors: Red Leak LED = Out-of-line Leak Mode (Water Detection Cables). Blue Leak LED = In-line Leak Mode (Mini Turbine).

When you've reached the right mode, wait; the device will enter that monitoring mode after a few seconds.

Additional Information

Remote Configuration

The Cloud Configuration option in the NCSS web portal allows you to remotely configure your Leak Sensors. This can be done before or after installation.

One unit, on the Equipment page

  1. On the Equipment page, select the unit, then Edit Unit.

    Web portal unit details window for one unit (building A, unit 2 in this example), opened from the Equipment page. The Leak Sensors list on the left has Tub/Shower selected, with Vanity, Kitchen, Dishwasher and Toilet below it. Tub/Shower shows CURRENT STATUS No Leak Detected, its serial number, Last Checked 2 hours ago and a Show More link. Edit Unit is outlined in the upper-right corner, next to Delete and Notes.

  2. In the Leak Sensor's section, select Show More.
  3. Turn on Cloud Configured and choose the monitoring mode: In-Line for a Mini Turbine, or Out-of-Line for Water Detection Cables. Then select Save Unit.

    Web portal Edit window for a unit (Edit 2 in this example). In one Leak Sensor's section (its serial number, LOCATION Kitchen, DESCRIPTION Kitchen), CLOUD CONFIGURED is checked and the list under it is open, offering Out-of-Line and In-Line, with In-Line highlighted and a note that In-Line leaks can be detected with an attached Mini Turbine meter. Both are outlined, and so is the Save Unit button in the lower-right corner, next to Cancel.

Many Leak Sensors at once, on the Program page

  1. Open the Leak Sensors tab and select Start Programming.
  2. In the Cloud Configured column, choose Yes for each Leak Sensor you want to configure, and set its Leak Mode: In-Line or Out-of-Line. Then select Save Programming.

    Web portal Program page, Leak Sensors tab (outlined, between Meters and Network), after Start Programming. The Cloud Configured column (outlined) shows Yes for every Leak Sensor, and in the first row the Leak Mode list (outlined) is open, offering Out-of-Line and In-Line, with the pointer on In-Line. The Single Meter Mode column shows No.

Cloud Configuration also helps to prevent accidental configuration switches. If the Cloud Configuration option is on and device configuration is changed via the device’s button, the device will quickly return to the correct configuration.

Note: Cloud Configuration is not available for use with GW201s.

Connect Leak Sensor to Gateway

Press the red Test Connect button. The Leak Sensor’s RF LED will blink green when it's able to communicate with the Gateway.

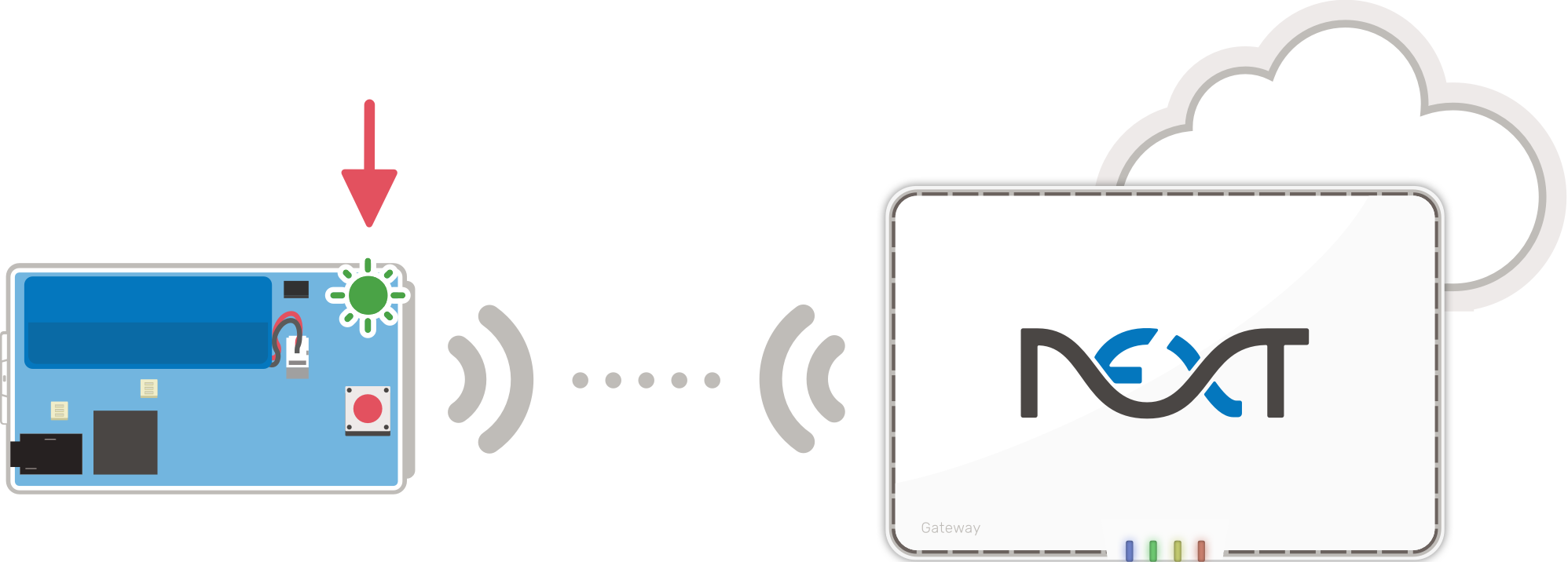

Press the red Test Connect button: an open Leak Sensor showing its circuit board, with the red button at the right and a red arrow pointing down at a green LED lit in the upper-right corner. Signal waves and a dotted line link it to a Gateway, in front of a cloud, on the right.

Note

The LS4 Leak Sensor must be programmed in the NextCentury Cloud and its Gateway must be online in order to begin communicating with its Gateway.

If the Leak Sensor is programmed to its Gateway and green blinks are not seen, ensure the Gateway and Repeaters are powered and online, then retry. If green blinks are not seen after retrying, an additional Repeater likely needs to be installed.

Please contact our support team for assistance.

FAQ

How many Leak Sensors are needed per Apartment?

Leak Sensors should be installed in any location where a leak will cause damage and may go unnoticed. Common locations are in utility closets, under sinks, dishwashers, and refrigerators.

If multiple Water Detection Cables are used, detection can be extended to more than one zone using a single Leak Sensor. Up to 3 Targeted or Rope Sense Cables can be daisy-chained together.

Where should I install Leak Sensors?

Leak Sensors can be installed in any area where plumbing leaks can occur and cause damage. Sensors are especially important in locations where leaks may go unnoticed. Common locations are in utility closets, under sinks, dishwashers, and refrigerators.

To reduce false alarms, avoid wrapping rope cables around plumbing supply or drain lines that may collect condensation. Instead, secure the rope cable on the floor below these lines.

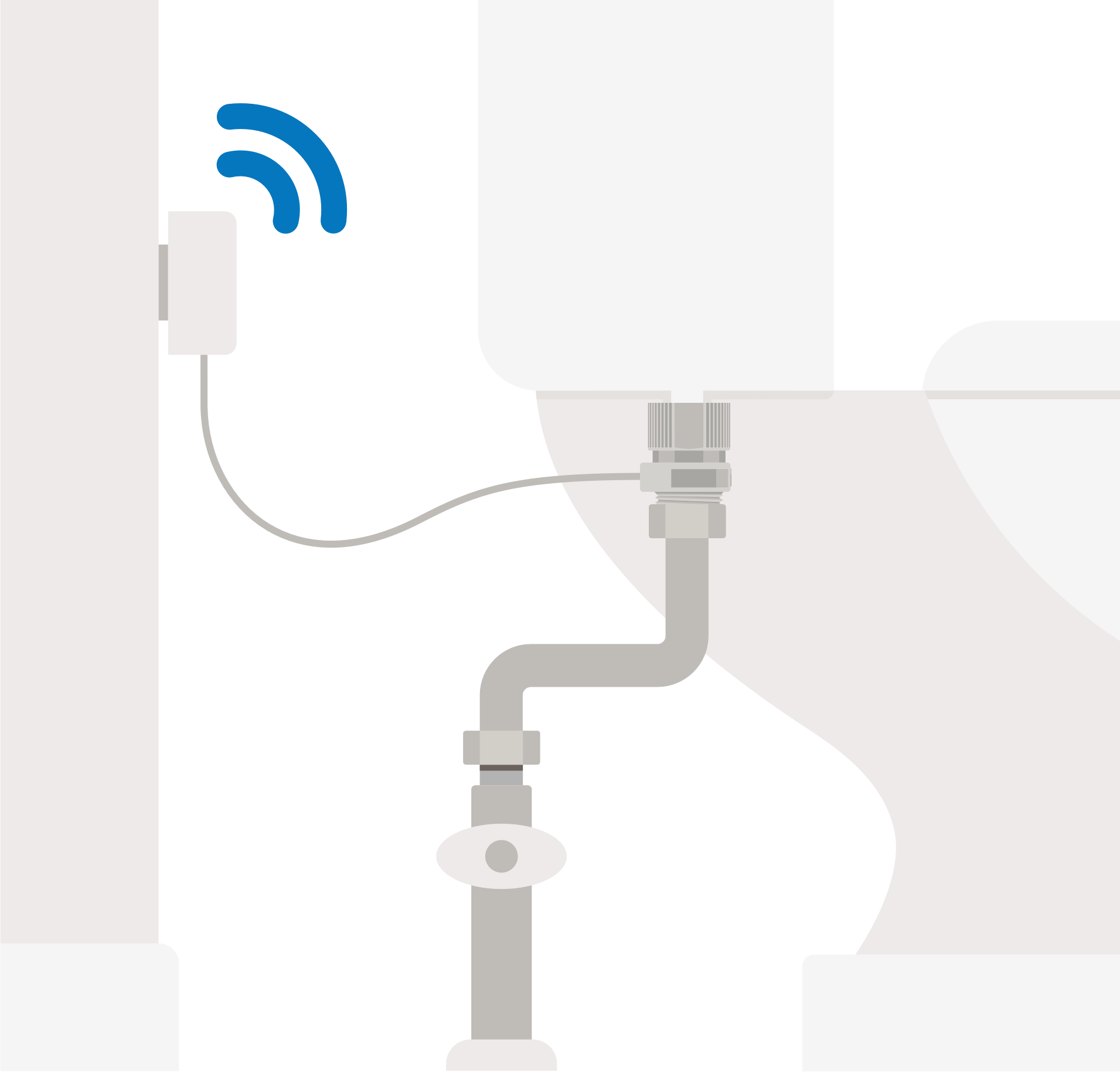

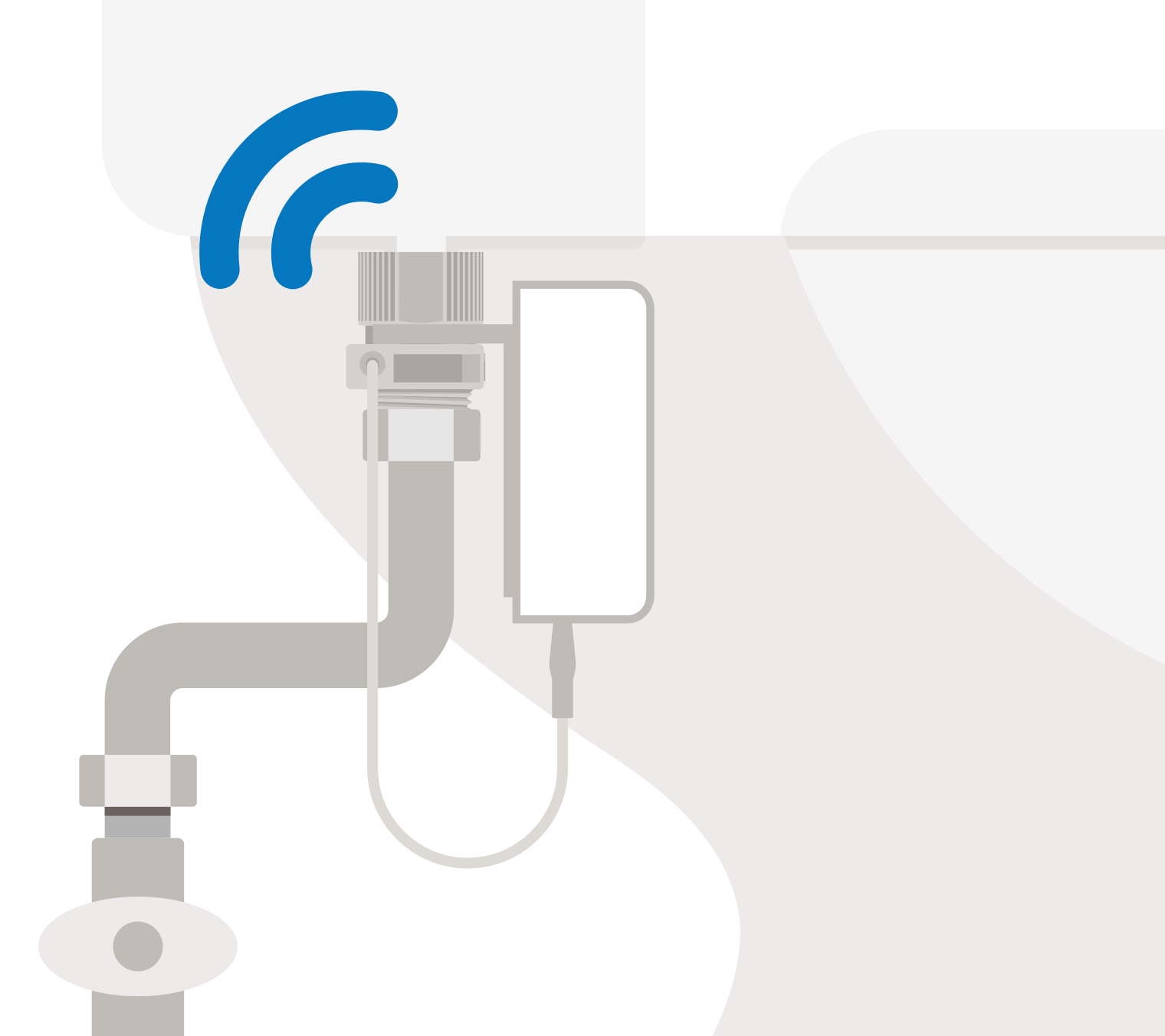

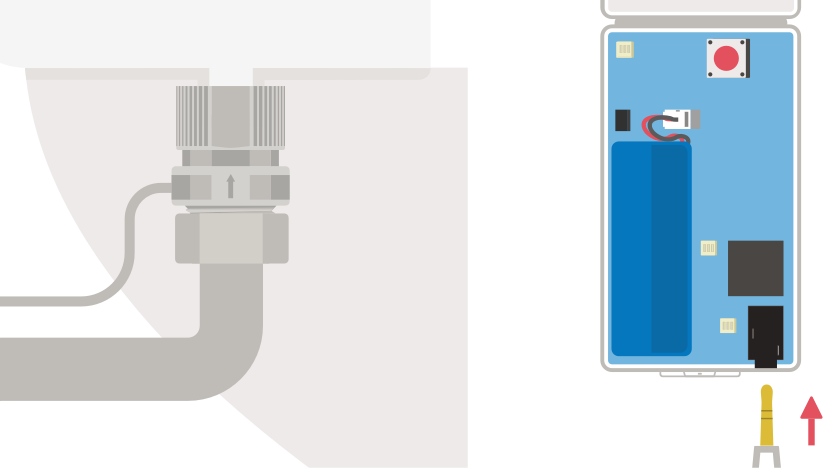

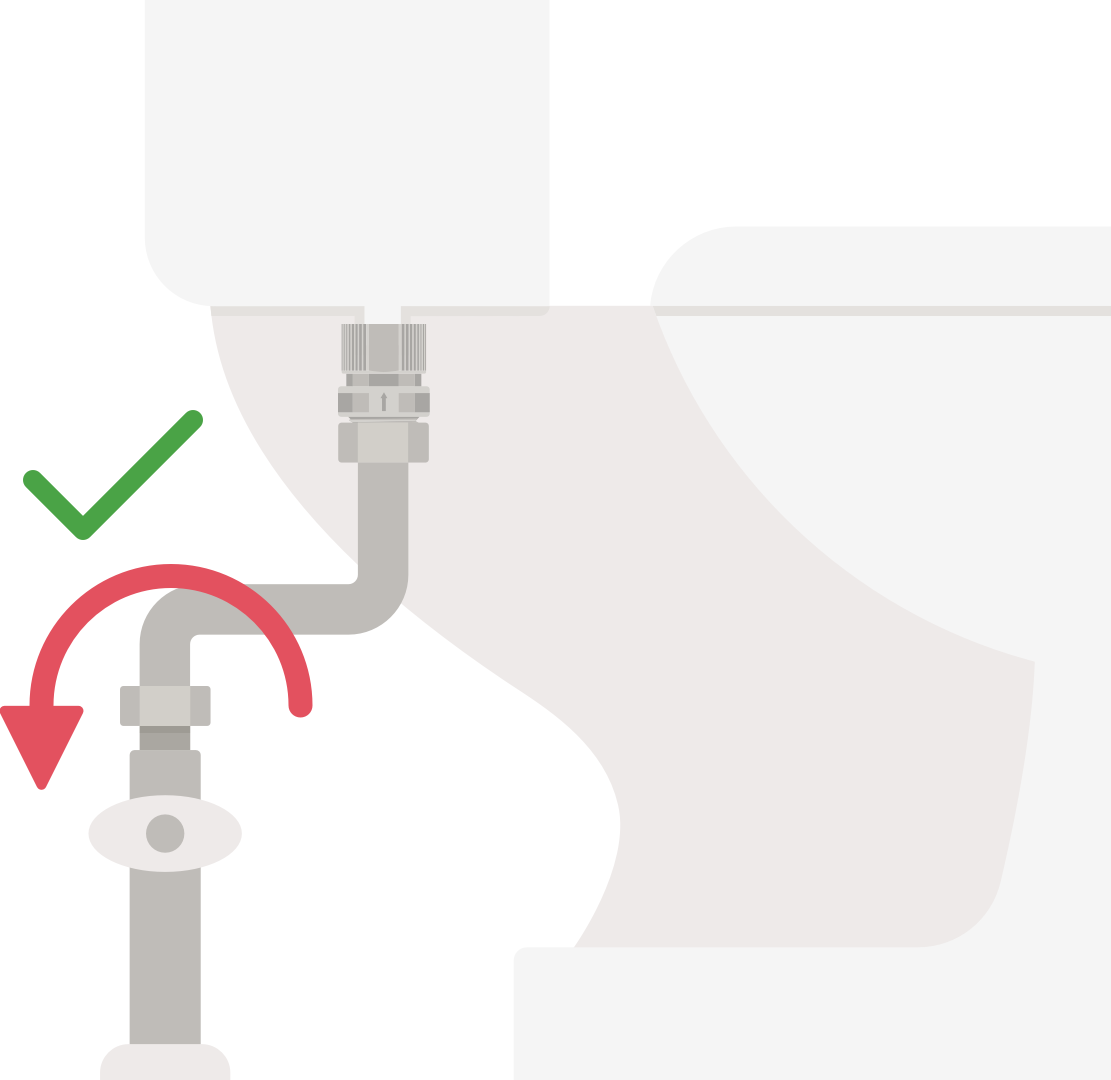

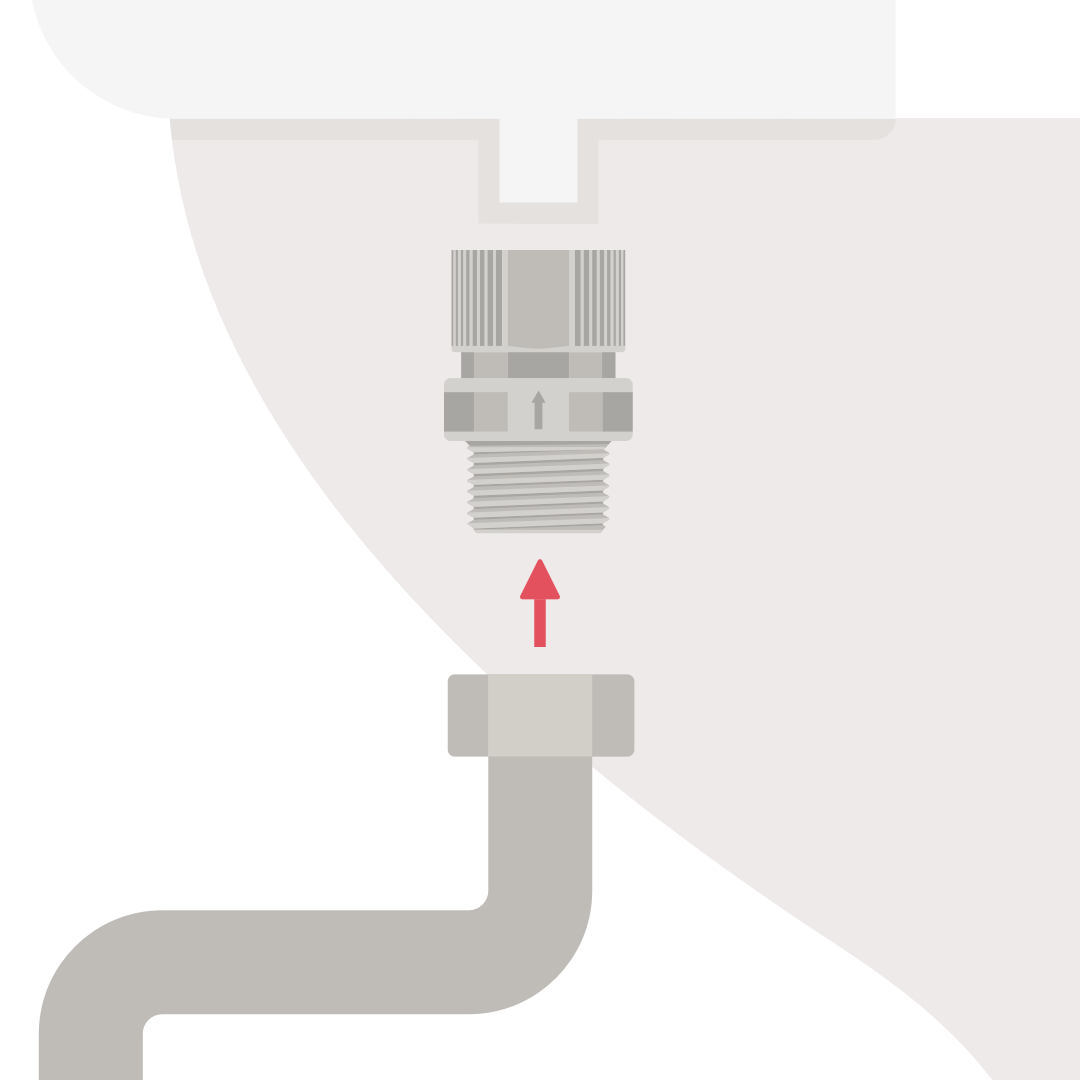

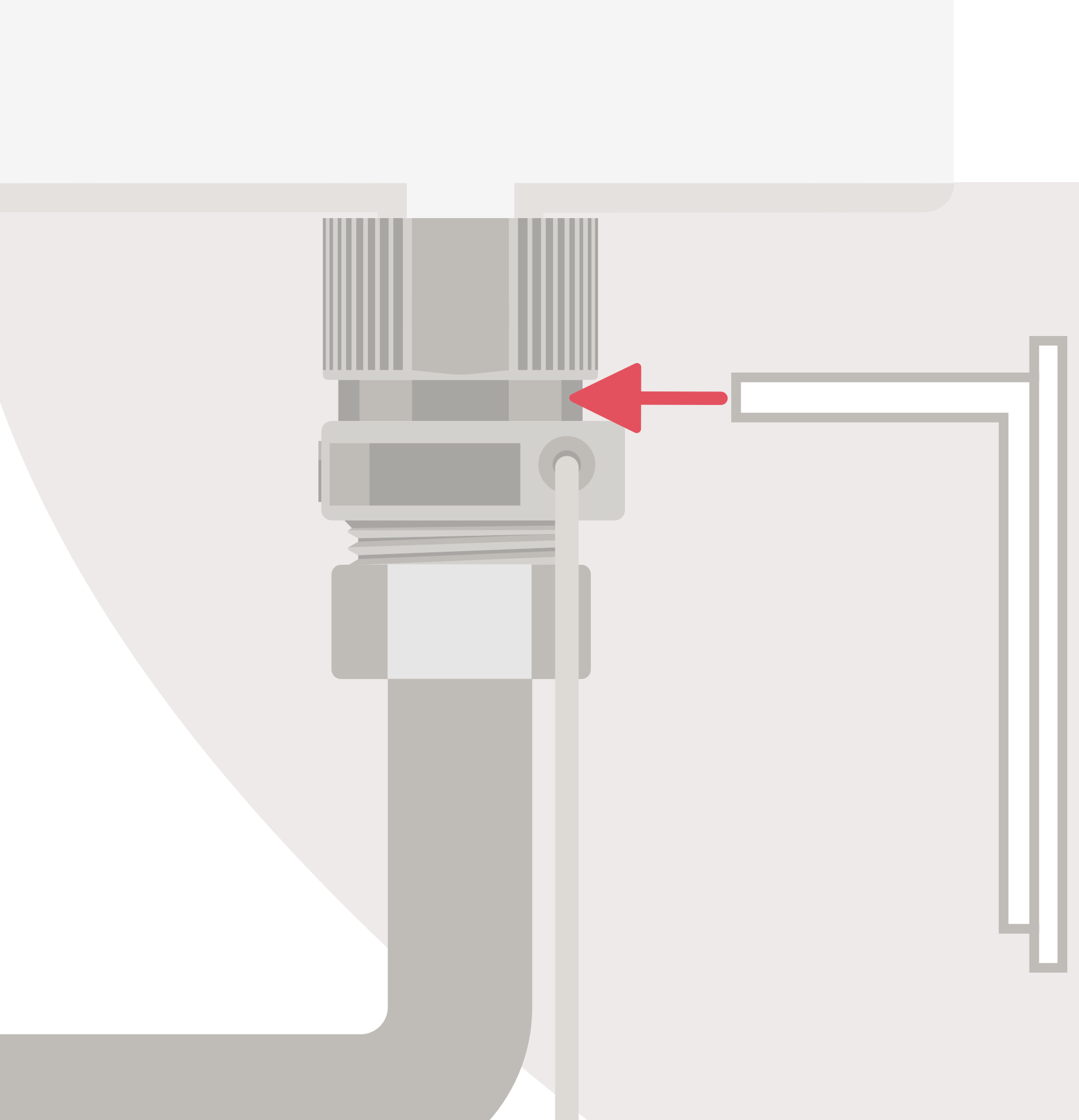

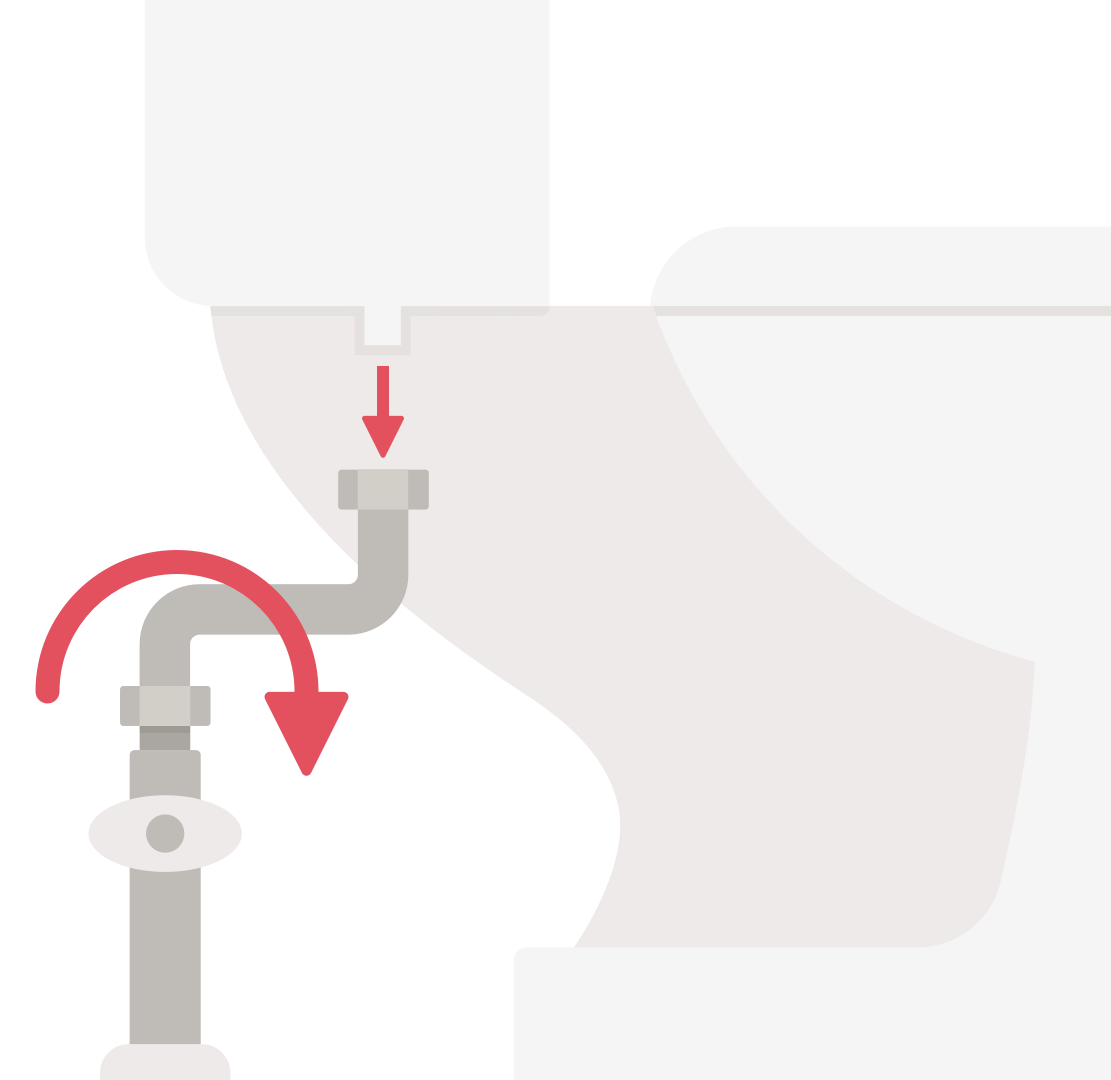

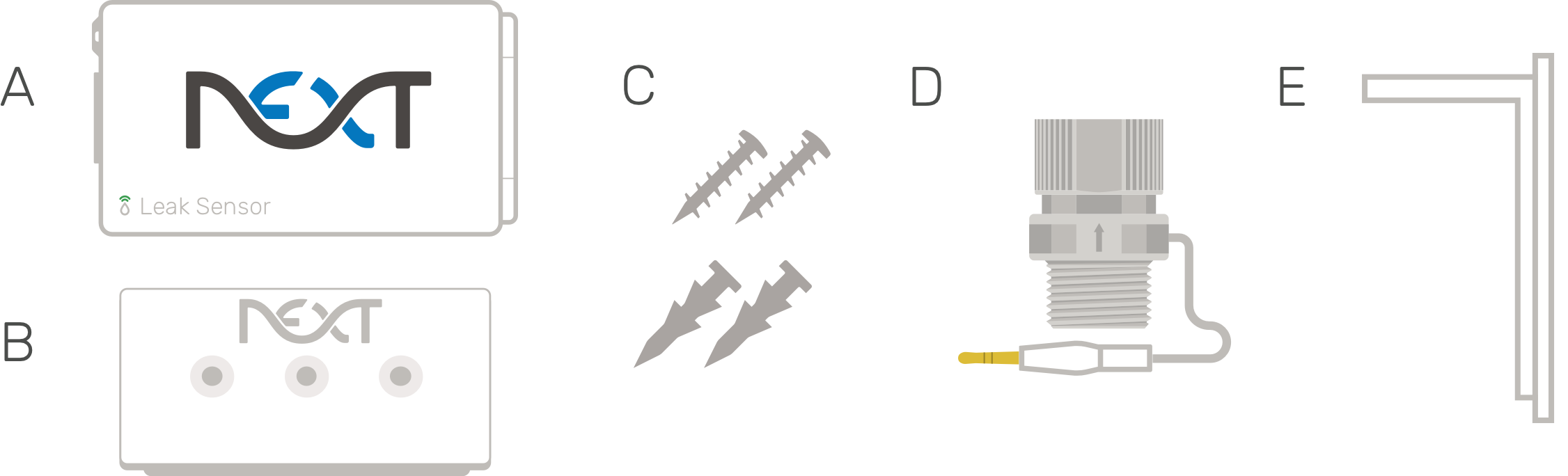

Leak Sensors can also detect inline leaks when paired with Mini Turbines in the Toilet Leak Sensor application.

A full guide can be found on our Leak Monitoring Installation page.

How many Repeaters and Gateways are needed on my property?

Your property will need one Gateway which will provide cloud-connectivity to your Leak Sensors. In most apartment building types, one Repeater is needed for every 30-60 apartment units.

If your property is already using NextCentury equipment for tracking utility usage, then the existing Gateway is compatible with the Leak Sensors. Additional Repeaters are only needed if Leak Sensors are installed beyond the existing RF coverage area, or if there was already insufficient RF coverage.

Our Product Support Team can evaluate your property and provide recommendations.

How do I turn off the Leak Sensor’s audible alarm?

When water is detected, the Leak Sensor will send a message to the cloud which then will trigger any text, phone, or email notifications that have been enabled. An audible chirp will alert you to the location of the leak.

After the problem is resolved, the rope cable may take up to 30 minutes to dry out, at which point the audible chirp will stop. Using a towel to remove any standing water will reduce this time.

Are residents notified when there is a leak?

When water is detected, an audible chirp will sound.

Additionally, the Leak Sensor will immediately send this alert to the cloud through the Leak Monitoring Service, notifying any property manager or maintenance staff which have been added as contacts.

What is the Leak Monitoring Service?

The Leak Monitoring Service provides property owners and managers a dashboard view of equipment connectivity, health, and alert status for all protected units.

This property leak management solution includes specialized alerting through email, text, and phone to ensure that leaks are caught quickly to reduce the risk of property damage.

Is the Leak Monitoring Service subscription required for the Leak Sensor to work?

The NextCentury Leak Sensors are used with the comprehensive Leak Monitoring Service to provide property owners and managers a dashboard view of equipment health and alert status for all protected units. This property leak management solution includes specialized alerting through email, text, and phone to ensure that leaks are caught quickly to reduce potential property damage.

Stand-alone Leak Sensors can detect leaks and sound an audible alarm. NextCentury network equipment and the Leak Monitoring Service subscription are required for cloud management and notifications.

How can I change the Data Resolution for my Leak Sensors?

The Leak Sensor is unable to have a Data Resolution higher than every 6 Hours. This is because a Leak Sensor is designed to check in immediately after it detects a leak. The check-in time is only to check if the device is still able to be read from the Gateway.

If you are looking to test the check-in quality you can put the device in Rapid Check-in Mode by pressing the red button inside the device 5 times quickly.

How do I put the Leak Sensor in Rapid Check-in Mode?

The device can be put into Rapid Check-in Mode by pressing the red button inside 5 times quickly.

How do I add others so they can manage leaks and receive notifications?

Your Billing Company or Installer can initially add one or more property contacts for access to your property web portal.

If you already have access to the property portal and would like to add additional contacts, select the gear icon to add or remove other contacts.

How do I stop email, text, or phone notifications about leaks?

If you are no longer the correct contact for receiving notifications and managing alerts, click the unsubscribe link at the bottom of the latest notification email you have received.

Alternatively you can view the full list of alert contacts for your property and make adjustments at property.nextcenturymeters.com.
