Overview
Meter coupling set for 3/4" water meters with 1" thread.
Replaced by a newer product
The CS201 Coupling Set has been replaced by the MTW CPL Poly 07520.

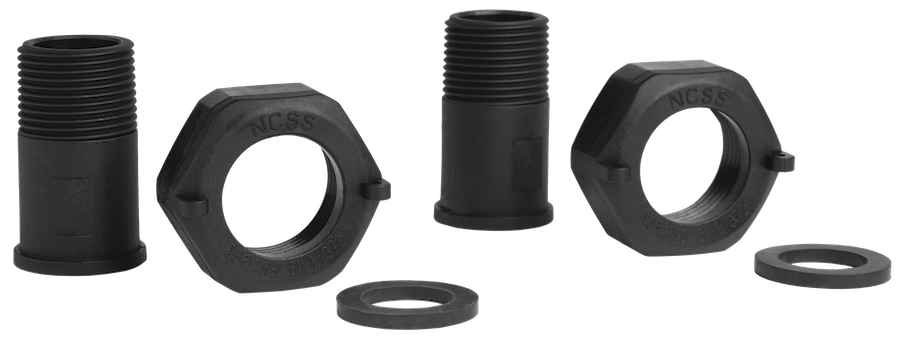

The CS201 Coupling Set connects a 3/4" water meter with 1" thread to the plumbing. It can be used along with the ST201 Spacer Tube during initial plumbing installation: the Spacer Tube holds the meter's place while the lines are flushed, then it's replaced with the M201 Series Water Meter or another 7.5" water meter with 1" thread.
The CS201 Coupling Set is not required for the M201 Series Water Meter, but not all third-party coupling products are compatible with the M201.
Specifications
More details
| Type | Standard 3/4" meter coupling |
|---|---|
| Thread | 1" NPSM |
| Maximum temperature | 194°F |
| Maximum pressure | 150 PSI |
Certifications
| Drinking water | NSF/ANSI 61 & 372 Certified |
|---|
