Troubleshoot a Connection alert

A Connection alert means a device has gone offline. Usually there's a reason somewhere else on the property, and the pattern of alerts helps you find it. For the other alert types, see View and resolve alerts.

In the Alerts list, it looks like this:

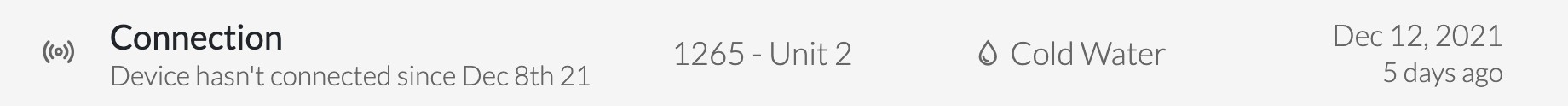

A Connection alert in the web portal's Alerts list: Connection, Device hasn't connected since Dec 8th 21, for 1265 - Unit 2, Cold Water, dated Dec 12, 2021, 5 days ago (the unit and dates are an example).

Find where the problem is

Meter reading data travels along a chain: from the meter reading device, through any Repeaters, to the Gateway, which sends it to the cloud. Where the alerts are tells you which link in the chain to check:

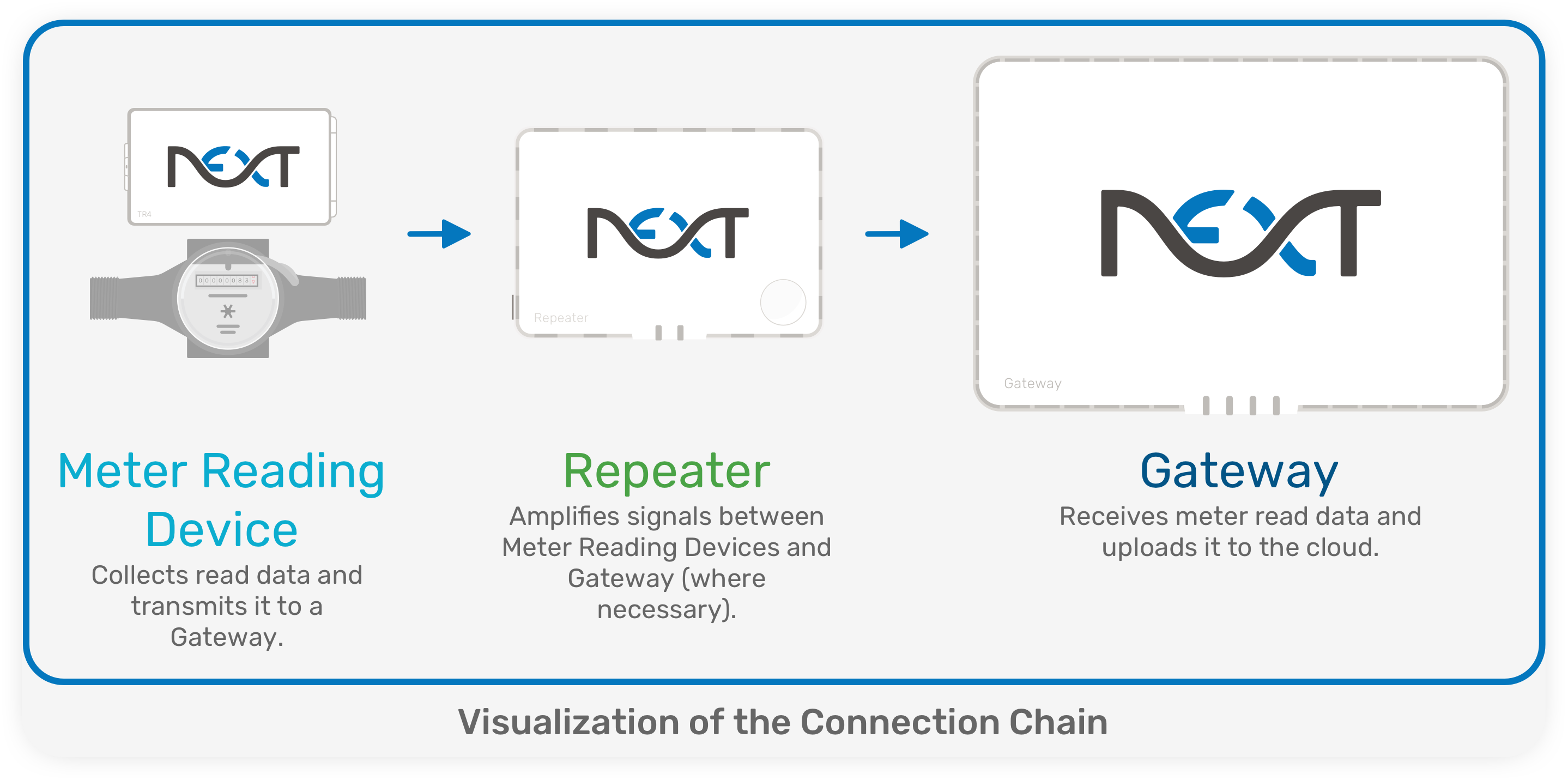

Visualization of the Connection Chain, from left to right with arrows between them. Meter Reading Device (a Transceiver above a water meter): Collects read data and transmits it to a Gateway. Repeater: Amplifies signals between Meter Reading Devices and Gateway (where necessary). Gateway: Receives meter read data and uploads it to the cloud.

  • Every device on the property has a Connection alert: usually a problem with the Gateway.
  • A group of meter reading devices near each other: usually a Repeater that isn't working properly, or a spot that needs another Repeater.
  • A single meter reading device: usually a problem with that device.

Meter reading devices are Transceivers (including the ones built into devices like the NM4-I and RR4-TR) and Leak Sensors.

To see which devices are offline in the Web Portal, open the property's Alerts page, which lists every device with an active alert. Or open the property's Equipment page and use the filter at the top right to show only devices that are Not Communicating, or that have Poor signal strength.

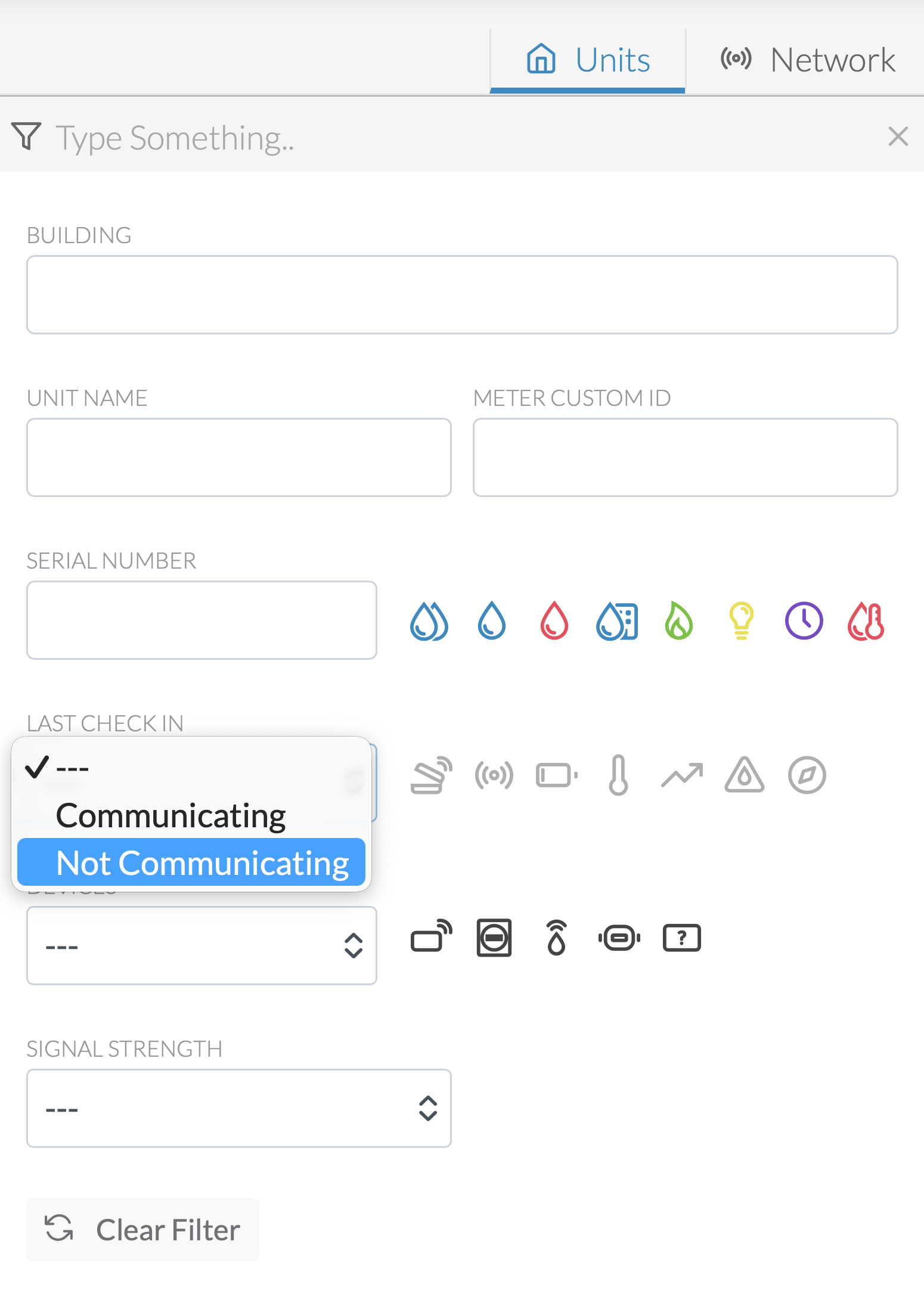

The Equipment page filter, opened from the filter field (Type Something..) at the top right of the Units tab. It has BUILDING, UNIT NAME, METER CUSTOM ID, SERIAL NUMBER, LAST CHECK IN, DEVICES, and SIGNAL STRENGTH, with rows of utility, alert, and device icons beside them, and a Clear Filter button. The LAST CHECK IN list is open, offering Communicating and Not Communicating, with Not Communicating highlighted. The same Equipment page filter with the SIGNAL STRENGTH list open, offering Excellent, Good, and Poor, with Poor highlighted.

Gateway

Check the Gateway's internet connection. If it uses Wi-Fi or Ethernet, you may need to check with your internet service provider that your service is active and working. See also Gateways.

Wi-FiEthernetCellular
  • Make sure the router and modem are on and their cables are connected.
  • If you've changed your Wi-Fi name or password, enter the new details with Direct Connect in the NCSS mobile app.
  • If the router or the Gateway has moved, the Gateway may now be too far from the router. Distance isn't the only thing that weakens Wi-Fi: materials like metal and concrete can weaken it even between nearby rooms.

Repeaters and meter reading devices

These devices send their data to a Gateway by radio instead of connecting to the internet. They include Transceivers, Repeaters, NM4-I meters, Remote Readers, and Leak Sensors.

First, check that the right device is programmed: the serial number on the device should match the one programmed for that unit in the Web Portal. Check Repeaters too, even though they aren't assigned to a unit. A Repeater's Description can help you find it: it shows at the top, next to the serial number, and you can add one with the Description button at the bottom.

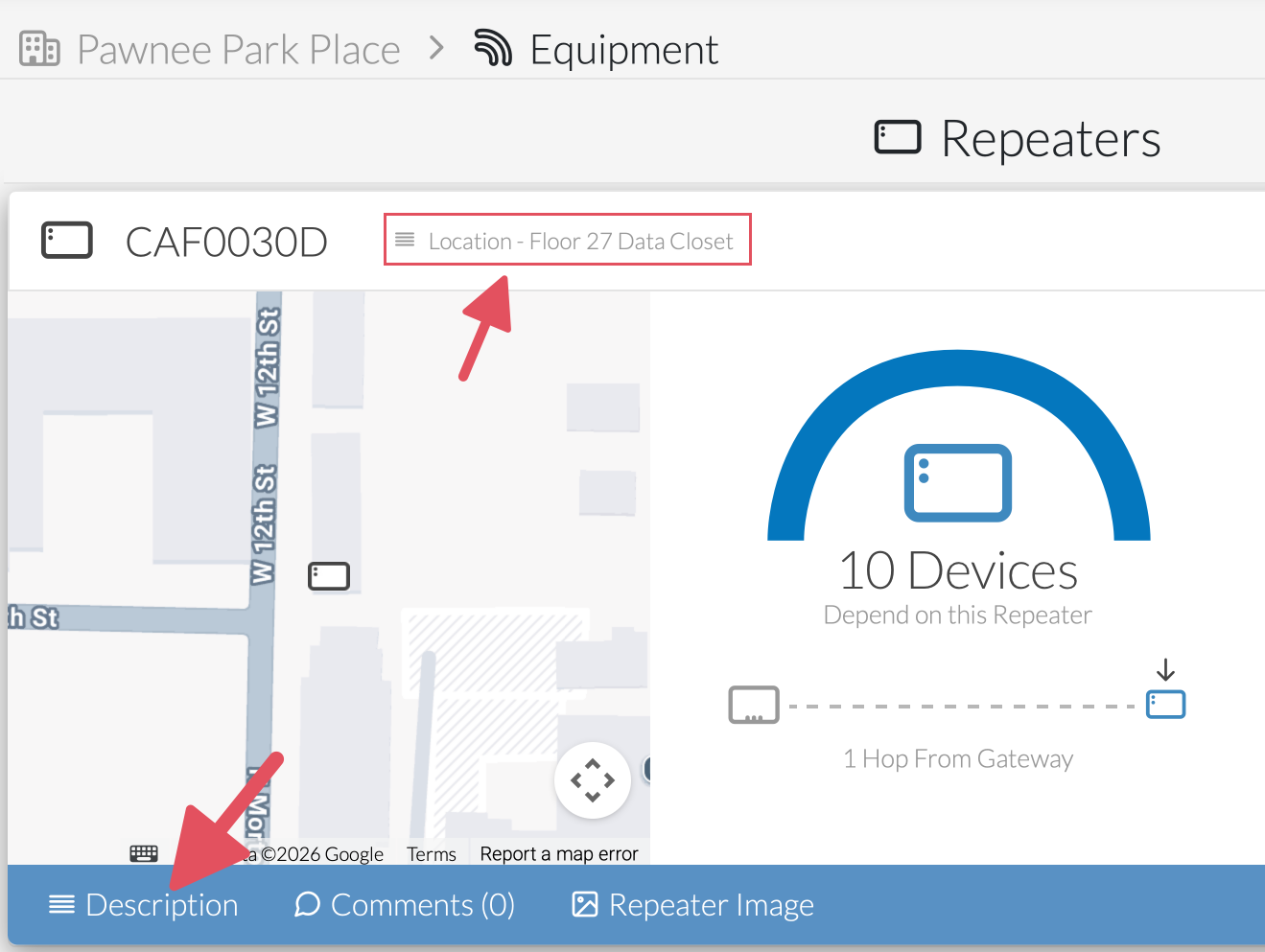

Web portal Equipment page (Pawnee Park Place in this example) with a Repeater's row expanded under Repeaters. At the top, next to the serial number, the Repeater's description (Location - Floor 27 Data Closet) is outlined, with a red arrow pointing to it. Below are a map with the Repeater's position, 10 Devices Depend on this Repeater, and 1 Hop From Gateway. A second red arrow points to Description at the left end of the blue strip along the bottom, next to Comments (0) and Repeater Image.

Then check the device itself:

Repeaters

Check that the Repeater is plugged in with the correct NextCentury power supply. When it's on, the Power LED is blue.

To check its connection to the Gateway, press the Test Connect button. The RF LED flashes red when you press it. A green flash after that means the Gateway answered: the Repeater is in range and can communicate with it.

If there's no green flash, you may need to move the Repeater closer to the Gateway, remove obstacles that block the RF signal, or add another Repeater.

For more about the LEDs, see the RE4 or RE201 LED diagram.

Transceivers

Open the Transceiver and press the red Test Connect button. If any LED lights up when you open it or press the button, the battery has power. A green flash means it's in range and can communicate with the Gateway.

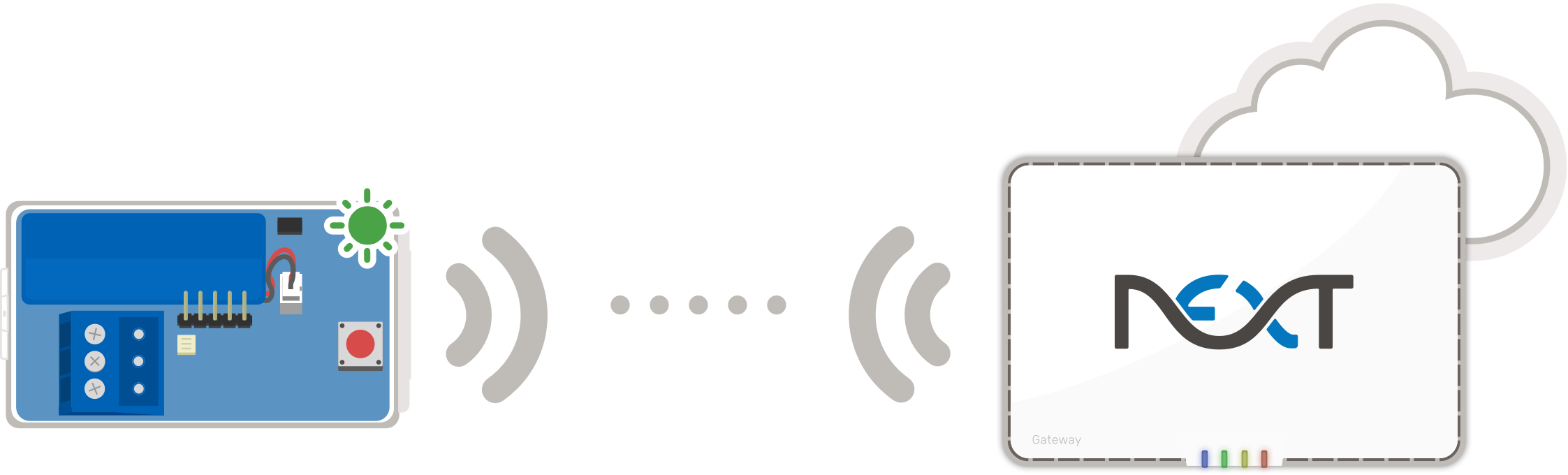

Test a Transceiver: an open Transceiver showing its circuit board, with the red button at the right and a green LED flashing in the upper-right corner. Signal waves and a dotted line link it to a Gateway, in front of a cloud, on the right.

If the green flash doesn't happen, you may need to move installed equipment or add a Repeater to strengthen the RF network. For suggestions for your property, contact our support team.

Enclosed Transceivers (TR4-X, RR4-TR)

Swipe a magnet near the right side of the device. If any LED lights up, the battery has power. A green flash means it's in range and can communicate with the Gateway.

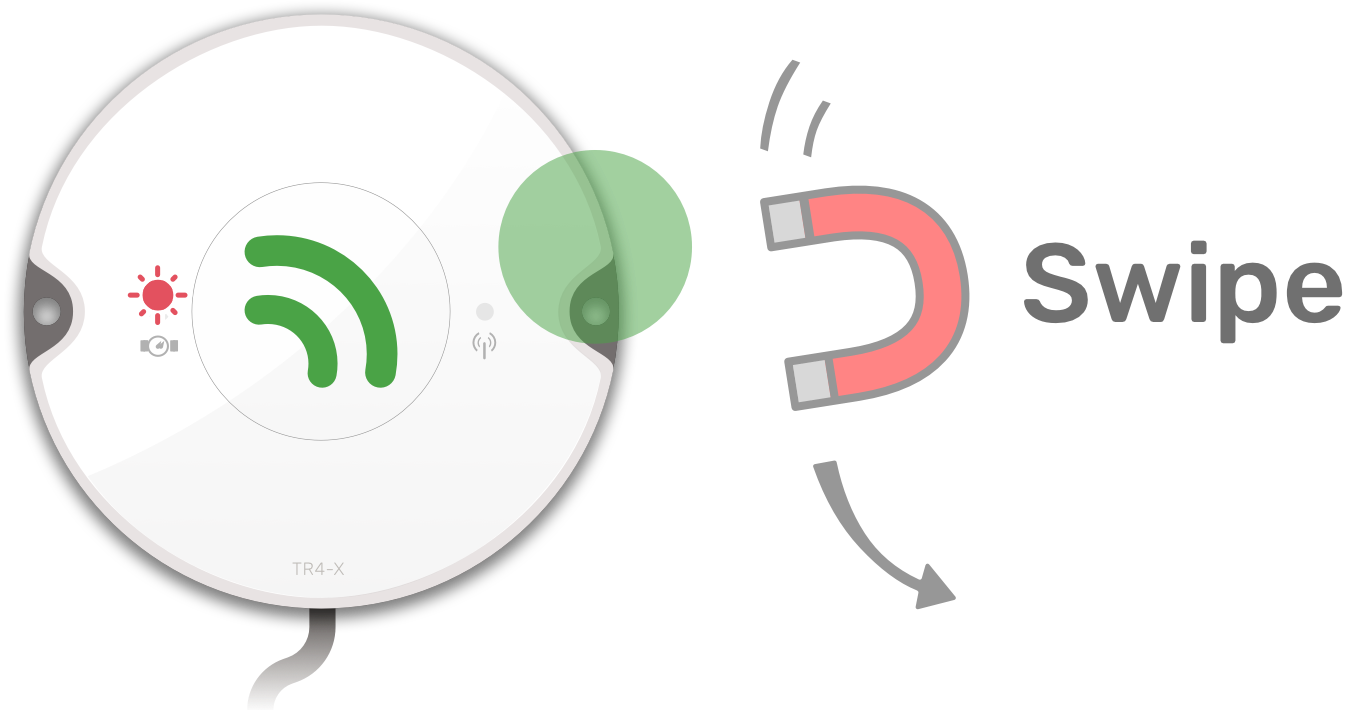

Test a TR4-X: swipe a magnet near the right side of the device. The round TR4-X has a green signal symbol in the center, a red LED lit at the left above a small meter icon, and a gray LED above an antenna icon at the right. A green circle marks its right edge, where a red horseshoe magnet, the word Swipe, and an arrow curving down show the motion. Test an RR4-TR: a green circle marks the right side of its display, where a red horseshoe magnet is held. The RR4-TR shows the NEXT logo, Meter Display, a green LED at the upper left, an example reading of 382,094 WATER GALLON, and Model: RR4-TR with a serial number label below.

If the green flash doesn't happen, you may need to move installed equipment or add a Repeater to strengthen the RF network. For suggestions for your property, contact our support team.

NM4-I meters

Open the lid, close it, and open it again. If any LED lights up, or anything shows on the display, the battery has power. A green flash means it's in range and can communicate with the Gateway.

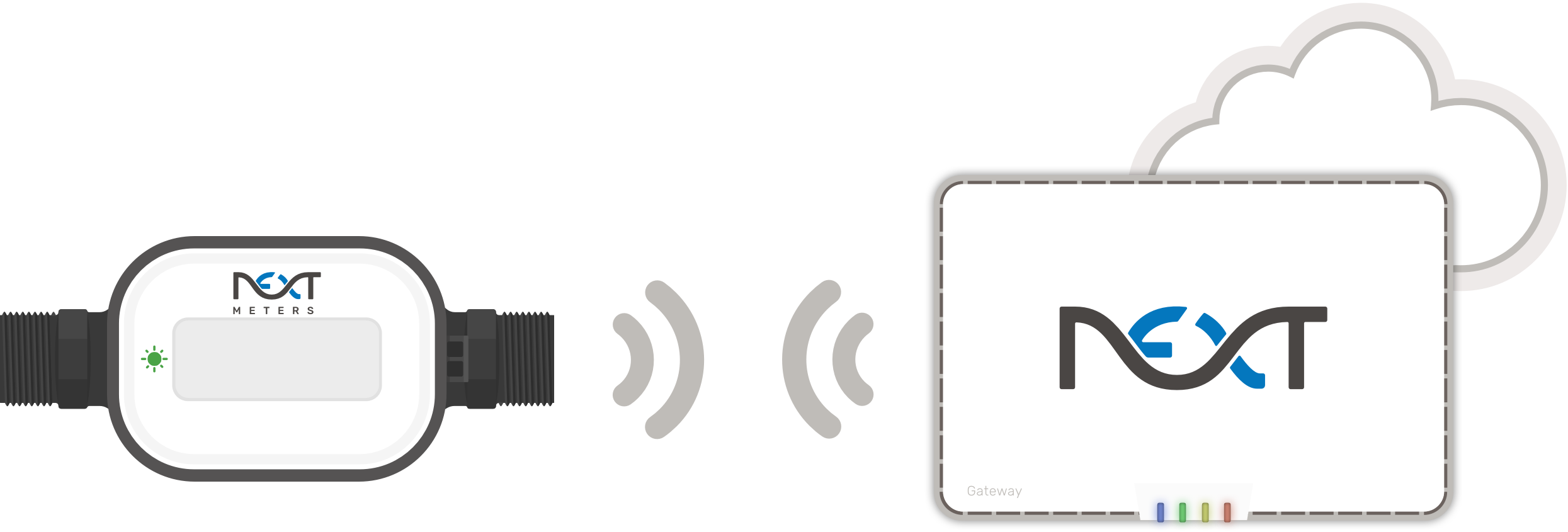

Test an NM4-I meter: the meter, an inline body with threaded ends and a display, with a green LED flashing at its left. Signal waves link it to a Gateway, in front of a cloud, on the right.

If the green flash doesn't happen, you may need to move installed equipment or add a Repeater to strengthen the RF network. For suggestions for your property, contact our support team.
